Brompton chain | 98 link Brompton chain

More info

Brompton 98 link chain

Which Brompton is this chain for?

This chain is used on a standard 3 speed Brompton folding bike (with 50 tooth front chain ring) with either the 13T or 14T rear sprocket

This chain is also used on a 2 speed or 6 speed Brompton folding bike with reduced gearing (44 tooth front chain ring) where the largest rear sprocket is 16 tooth (used on the two speed and BWR 6 speed wheels) or 15 tooth (as used on the old Sachs/SRAM 6 speed rear wheel)

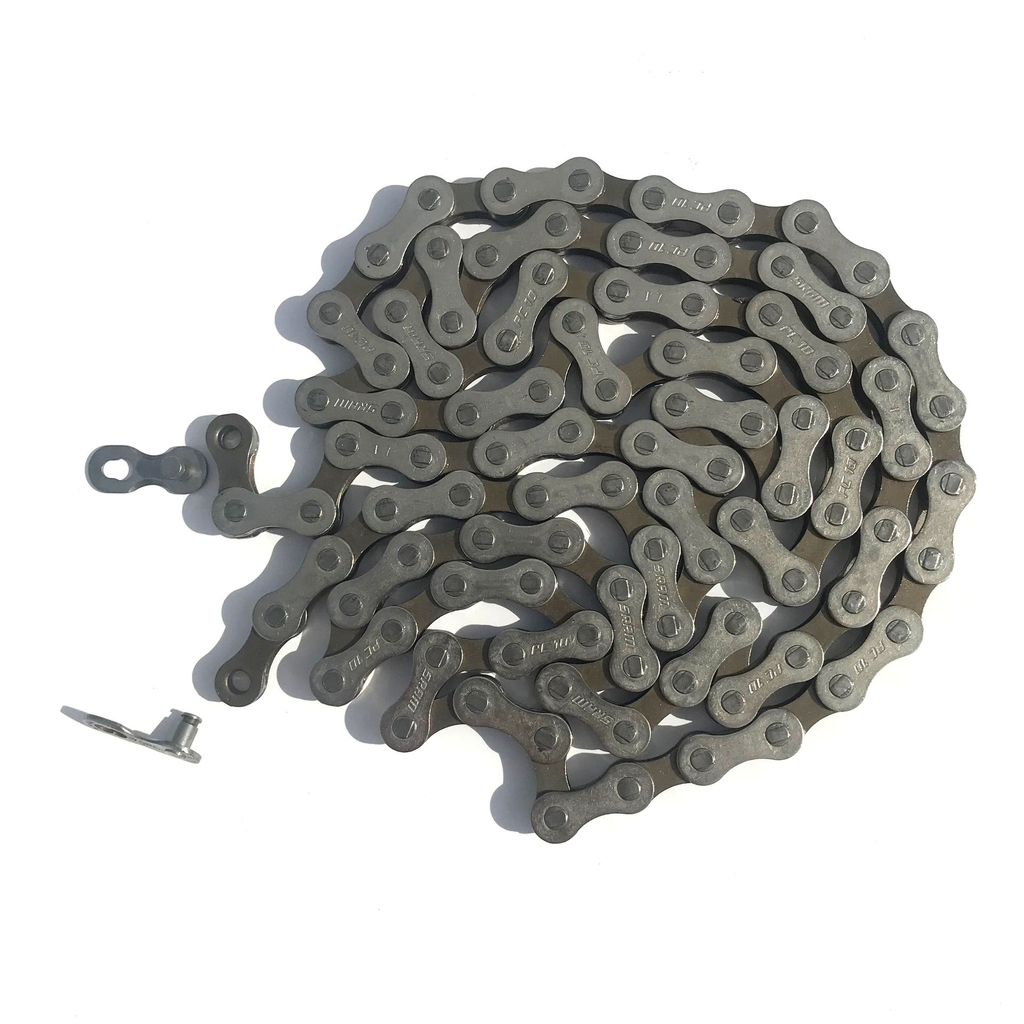

The chain comes complete with SRAM PowerLink for easy chain joining

The table below shows all the chain ring / sprocket / chain combinations. Having the correct length is important - it will help stop the chain jumping off when folding (as the chain tensioner keeps it correctly taut)

If you are changing your chain we also recommend changing the sprocket(s) - changing just the chain will result in the chain wearing quicker and the chain may also slip on the old sprocket(s) when under load.

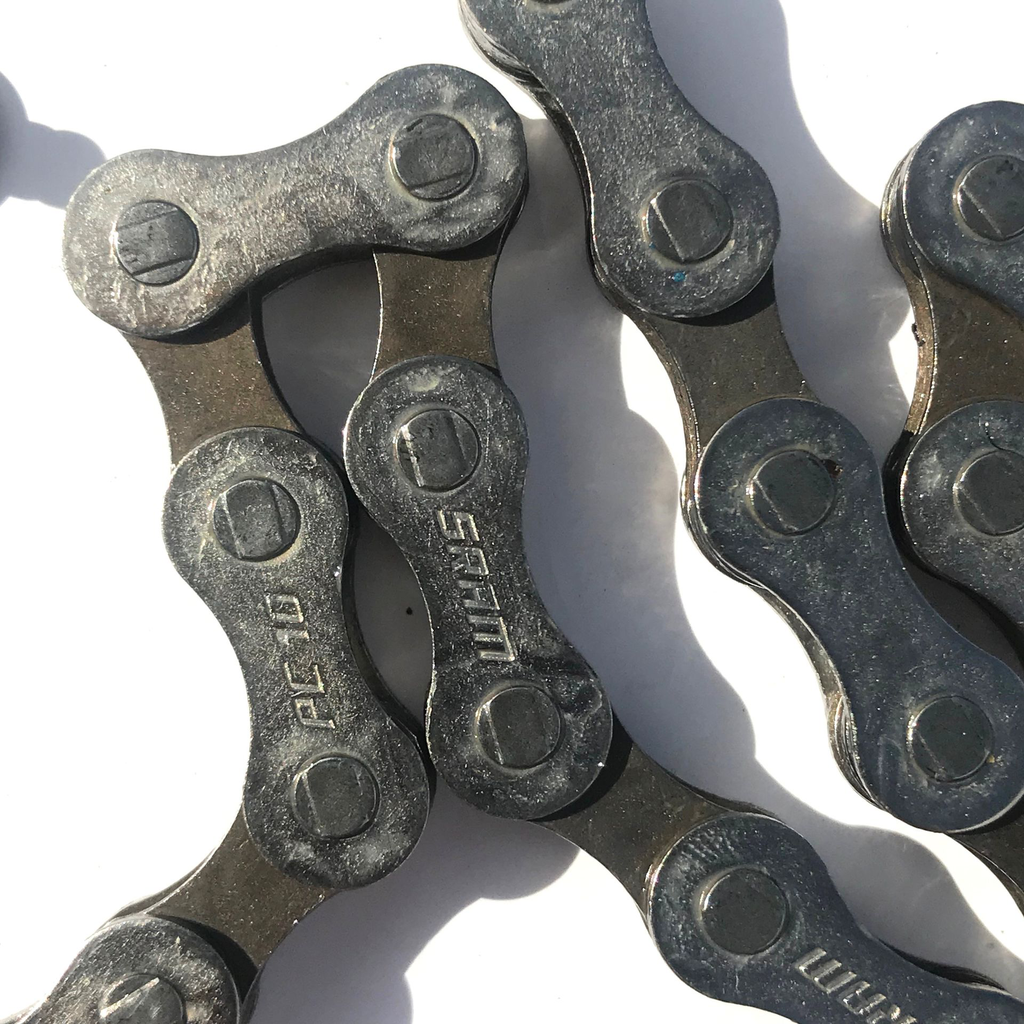

The chain is marked: SRAM PC-10

Tools Required:

To remove your old chain you could need a chain tool (it depends upon whether the old chain had a powerlink) - this will destructively remove all chains, or a pair of master link pliers (to remove the PowerLink to split the chain)

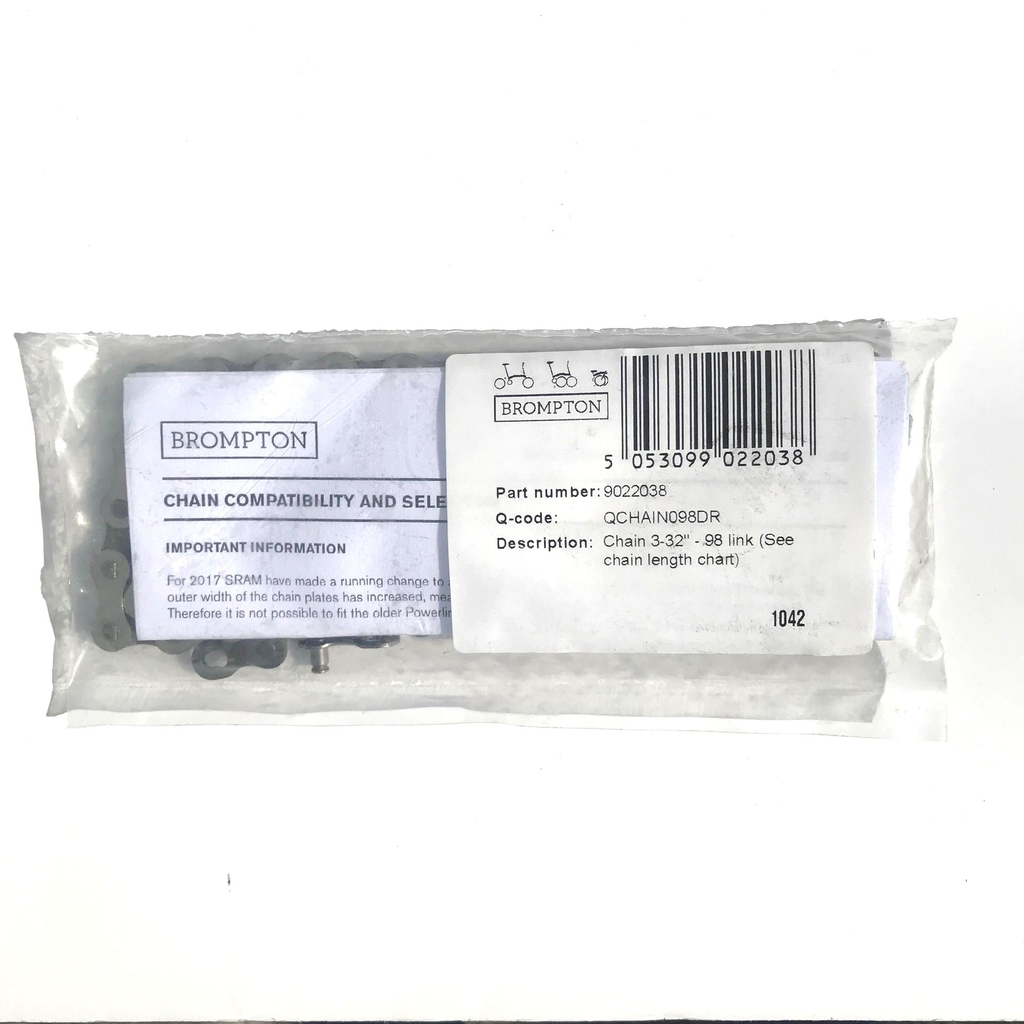

Brompton Q part code: QCHAIN098DR
Old Brompton Q part code: QCHAIN98DR
Brompton part number: 9022038

Brompton chain length summary

Chainring	One Rear Sprocket		Two Rear Sprockets
54 tooth	12 or 13t	100 Links	12/16t, 13/16t or 13/15t	102 Links
50 tooth	13t or 14t	98 Links	12/16t, 13/16t or 13/15t	100 Links
44 tooth	12t, 13t or 14t	96 Links	12/16t, 13/16t or 13/15t	98 Links

We made this short video to help choose the right size / length of chain, how to remove your existing chain and how to install a new chain on a Brompton folding bike

Historical note:

Originally the Brompton chains with 3/32" width were just for Bromptons fitted with a derailleur (hence the Q part code suffix of DR).

Later Brompton models (approx 2012 onwards) started using a stepped in rear sprocket on all models, regardless of whether it was a single rear sprocket or derailleur with double sprocket

Reviews

Grade

Arnold B 15/09/2017

Has lasted well

I have had about 6000 miles out of the previous chain and rear sprockets. I don't think that's too bad. I lubricate after each ride with Cleanride and i think that helps to prolong the life of the chain etc.. It certainly keeps the chain clean, which is useful if a rear puncture repair is needed.

Brilliant service from Brilliant Bikes.

Grade

Ajay G 03/06/2017

Good product, great service

Bought as part of a drive train replacement for my 2007 Brompton, the bike is running great now, awesome service from Brilliant Bikes.
Time will tell how long the chain lasts.

Grade

brom 20/10/2015

easy to apply

Easy to change. Lasts for a few months, which is why I don't give it 5*, though I believe that's typical of Bromptons. Service is great, very helpful and fast.

Grade

phil h 01/06/2015

New chain

Packed well fast delivery , the chain came with oil on it and brilliant bikes sent me some free latex gloves which kept my hands clean

Grade

Ed 12/05/2015

Brompton chain

The correct chain for my 6 speed Brompton. I do quite a high mileage and so end up replacing the chain quite frequently. As ever delivered at lightning speed by Brilliant Bikes. And as a bonus it was Brilliant Bikes' 24,000th order so they decided to refund my payment! Thanks a lot.

Grade

Simon L 27/01/2015

A Brompton chain

So it is a Brompton chain but thAt is not the point. It is the seller. Brilliant bikes my on line local cycle shop! Prompt and brilliant

Write your review!

Have a question?

1 Question(s) answered - see below

If your question has not yet been answered here, use the form below to ask something

Answered questions

Asked by Andy
on 20/03/2021 Hello,I have a 5 speed (Sturmey Archer) Brompton circa early 2000, that I think is running a 1/8" 14 T rear sprocket and a 1/8" chain of 98 Links. The chain wheel is a single piece 50T.If I wanted to change the chain and sprocket can I fit a 3/32 SA rear sprocket and a 3/32" 98 Link chain or must replace like for like? Answer:
Yes your chain and sprocket suggestion would work fine.
