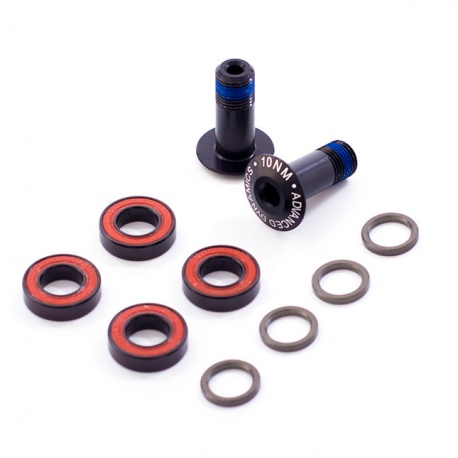

Orbea Occam seat stay pivot kit

Orbea Occam seat stay pivot kit

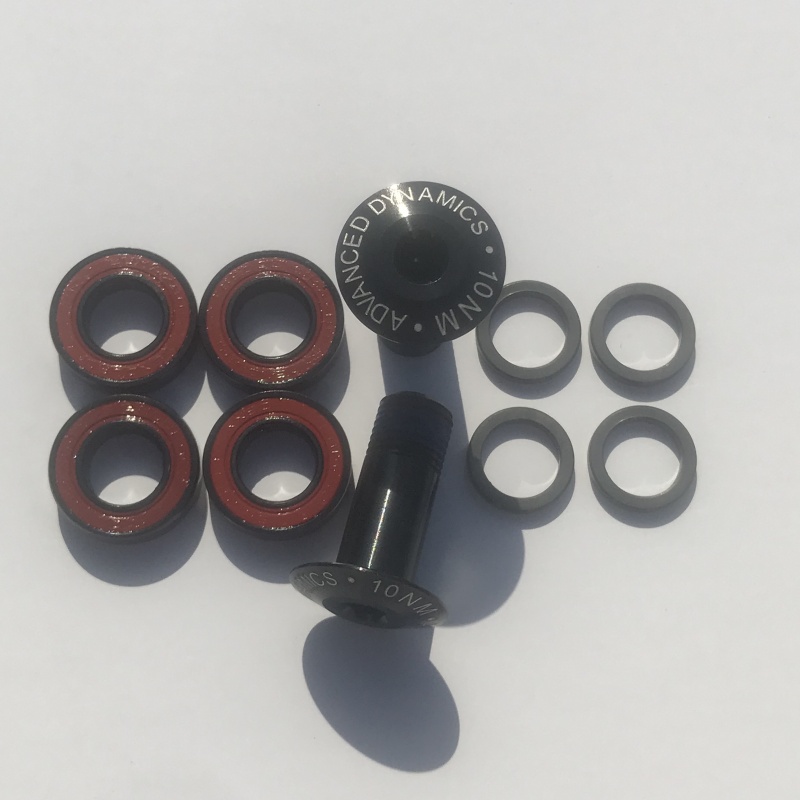

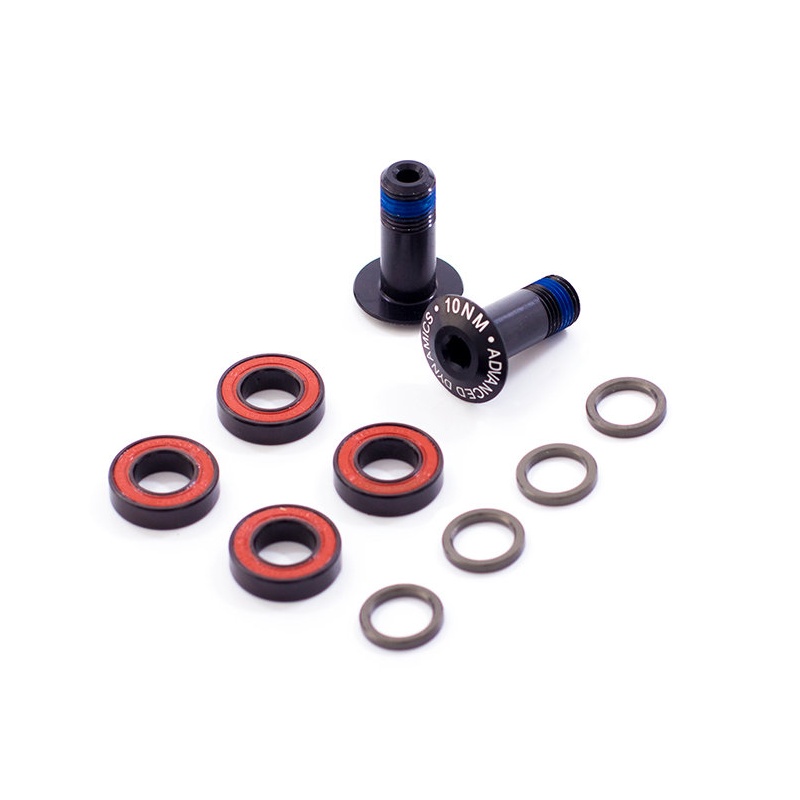

The kit includes the left and right mounting bolts, bearings and washers used on the main pivot where it joins to the seat stay

These are parts:
3 - 16100240 - 10x19x5 sealed bearing (x4)
4 - 12320005 - Link / front triangle pivot spacer / washer (x4)
7 - 12300021 - Link / front triangle pivot bolt (x2)

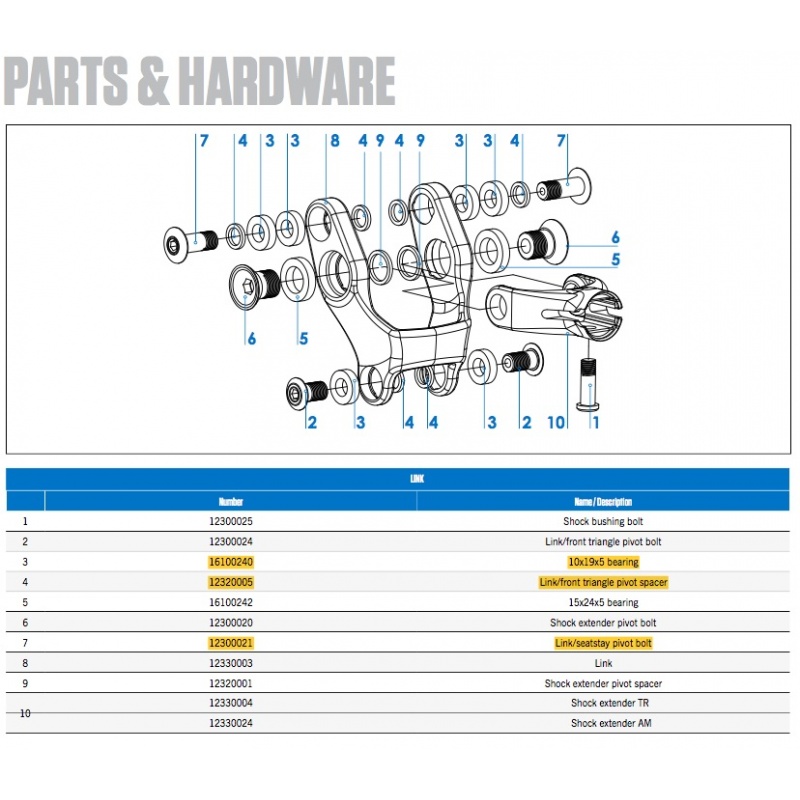

in the exploded parts diagram

The 10x19x5mm bearings are also available individually

This kit is compatible with the following bikes:

Orbea Occam 2017/2018 (TR and AM) aluminium frame
Orbea Occam 2017/2018 (TR and AM) carbon frame

If you are not sure if this is the right kit for your bike - go to the Orbea spare parts section of their website and enter your bikes serial number.

Known by Orbea as: KIT PIVOTE BIEL-TIR OCCAM M16
