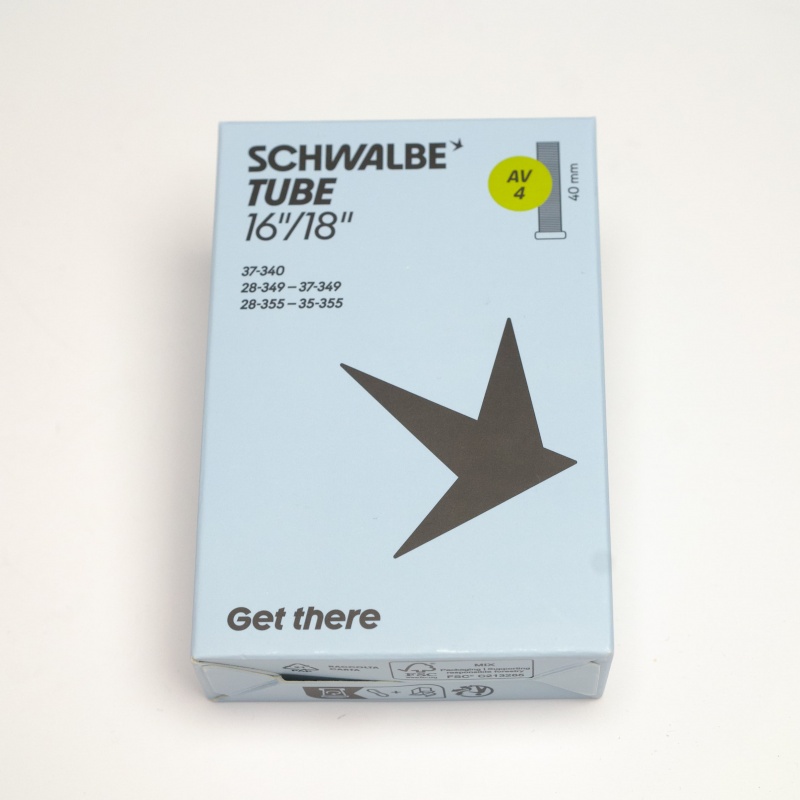

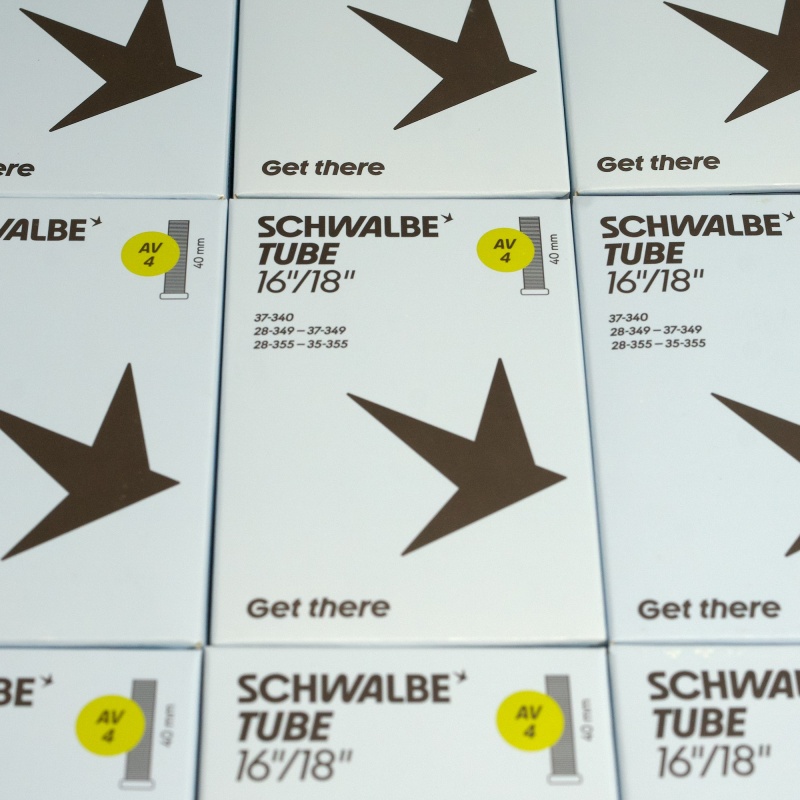

Schwalbe 16 inch Inner tube - AV4



16 / 18 inch inner tube with Schrader / car type valve, made by Schwalbe

Suitable for all Brompton folding bike tyres and our most popular Brompton tube.

More details

We have 86 in stock




Add to wishlist

More info

Schwalbe 16 and 18 inch inner tube - schrader valve

This Schwalbe AV4 16/18 inch tube is our most popular inner tube - favoured by us and Brompton riders

The range of tyres suitable for Brompton folding bikes has been growing in the last few years with more offerings from Schwalbe and new tyres from Continental - this inner tube fits them all!

It is exactly the same tube as the Brompton XL (Extra Light) tube with the addition of a rim nut (see below for more info about rim nuts) and a box. It fits all Brompton tyres.

This inner tube weighs in at just 85g and comes with a Schrader / car type valve - that is a whopping 20g (almost 25%) lighter than the Brompton standard inner tube.

Why choose this inner tube over other tubes available out there?

As Gerorge Orwell didn't say "All tubes are equal, but some are more equal than others"

Schwalbe perform a leak test on all of the tubes they make (twice), including inflation for 24 hours to ensure they maintain their air pressure. The valve has a replaceable core (not found on all inner tubes).

Because the inner tube has better retention of air, it means you have to spend less time inflating and more time for you, whether it's riding, in bed before work or at the office.

You should still check the tyre pressure monthly (for most tubes it's weekly). Running a tyre under inflated will mean that you need to put more effort into cycling and can result in damage to the tube / tyre or even the rim.

The AV4 inner tube fits ETRTO / ISO tyre sizes as shown below:
37-340 - 16 x 1 3/8" and 400 x 35A
28-349 - 16 x 1 1/8"
37-349 - 16 x 1 3/8"
28-355 - 18 x 1 1/8"
35-355 - 18 x 1.35"
35-349 - 16 x 1.35"
(The ETRTO size is the most accurate way of selecting the correct inner tube and can be found on the side of the tyre)

Q: So - What is the purpose of a rim nut?

A: Bear in mind that unlike this tube some inner tubes don't have a rum nut
The rim nut secures the valve into the rim
Your bike can be ridden perfectly safely without a rim nut
It comes in useful when installing a tyre or attaching a pump - as it helps stop the valve being pushed inside the rim With some rims there may be a rattle/noise if the valve is not fixed - that is why often valves without a rim nut are coated in rubber
The rim nut must only be tightened by hand. Never tighten the rim nut with pliers, as this can lead to inner tube damage

Q: What is the valve cap for?

The clear valve cap supplied with the Schwalbe inner tubes should be used, especially with Schrader / car type valves. It prevents dirt / water and chemicals from getting inside the valve and causing corrosion and damage - meaning the valve / tube will last longer.

This Inner tube is compatible with the following tyres:
Brompton Schwalbe Kojak 32-349 / 16 x 1 1/4 inch folding tyre with reflective sidewall
Brompton Schwalbe Kojak 32-349 / 16 x 1 1/4 inch tan wall folding tyre
Schwalbe Kojak 32-349 / 16 x 1 1/4 inch wired tyre
Brompton Schwalbe Marathon Racer 16 x 1.35 tyre (black reflective / tan wall)
Schwalbe Marathon 16 x 1.35 tyre
Schwalbe Marathon plus 16 x 1.35 tyre
Schwalbe Winter 16 x 1.2 studded tyre
Brompton Green / Kevlar tyre
Brompton Schwalbe One 16 inch tyre (black / tan wall)
Brompton Continental Compact Urban 16 inch tyre (all colours)

Bicycle compatiblity includes:
Brompton folding bikes
Dahon curve 16" folding bike
Mezzo D10 16" folding bike
and many more - in fact send us a message if you know one we are missing!

Fitting of the tyre / inner tube:

We recommend against using tyre levers when installing a tyre and tube, as it can cause damage to the tyre / inner tube or both. It may seem difficult or even impossible at first - but it is just technique, practice and patience

We made the below video to show how to fit without the use of levers - with the toughest to fit tyre

Made in: Indonesia

Valve type: Schrader / Auto / Moto / Car
Valve diameter: 8mm
Valve length: 40mm
Replaceable valve core (using valve core tool)
Comes with rim nut and valve cap

Schwalbe code: AV4

Have a question?

If your question has not yet been answered here, use the form below to ask something

*(Required - so we can email an answer - we wont show it)

Related items / accessories

Data sheet

Comm Code40132000
Supplier Reference:AV4
Rim nut:Yes
Valve type:Schrader / car / auto
