Brompton / CatEye saddle mounted rear light - VIZ150

Saddle compatibility:

In the middle of 2016, Brompton changed the design of their saddle. The stitching was removed to reduce chaffing and a small hole appeared underneath - ready for mounting a rear light - like this one!

You need the 2017 onwards model saddle for this light!

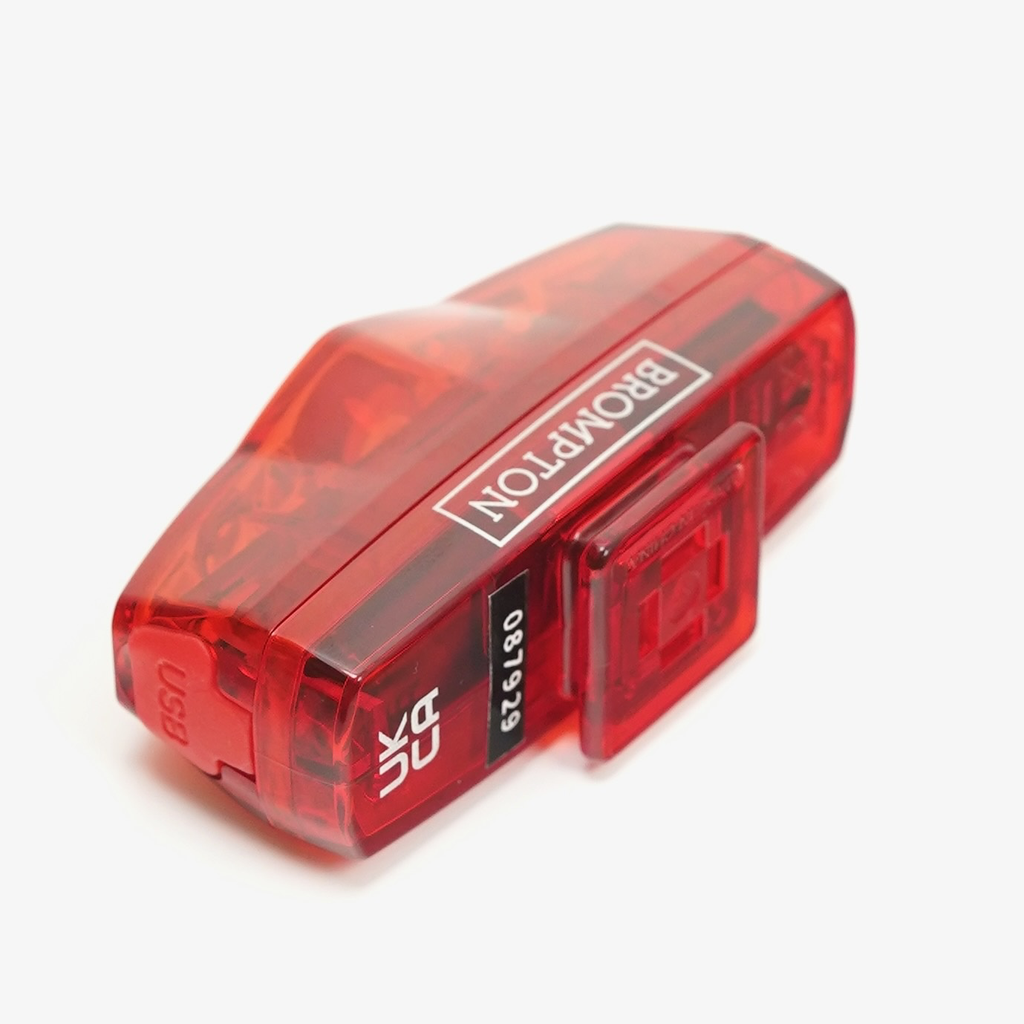

The light mount bracket is compatible with the saddle provided with:

• C Line
• P Line

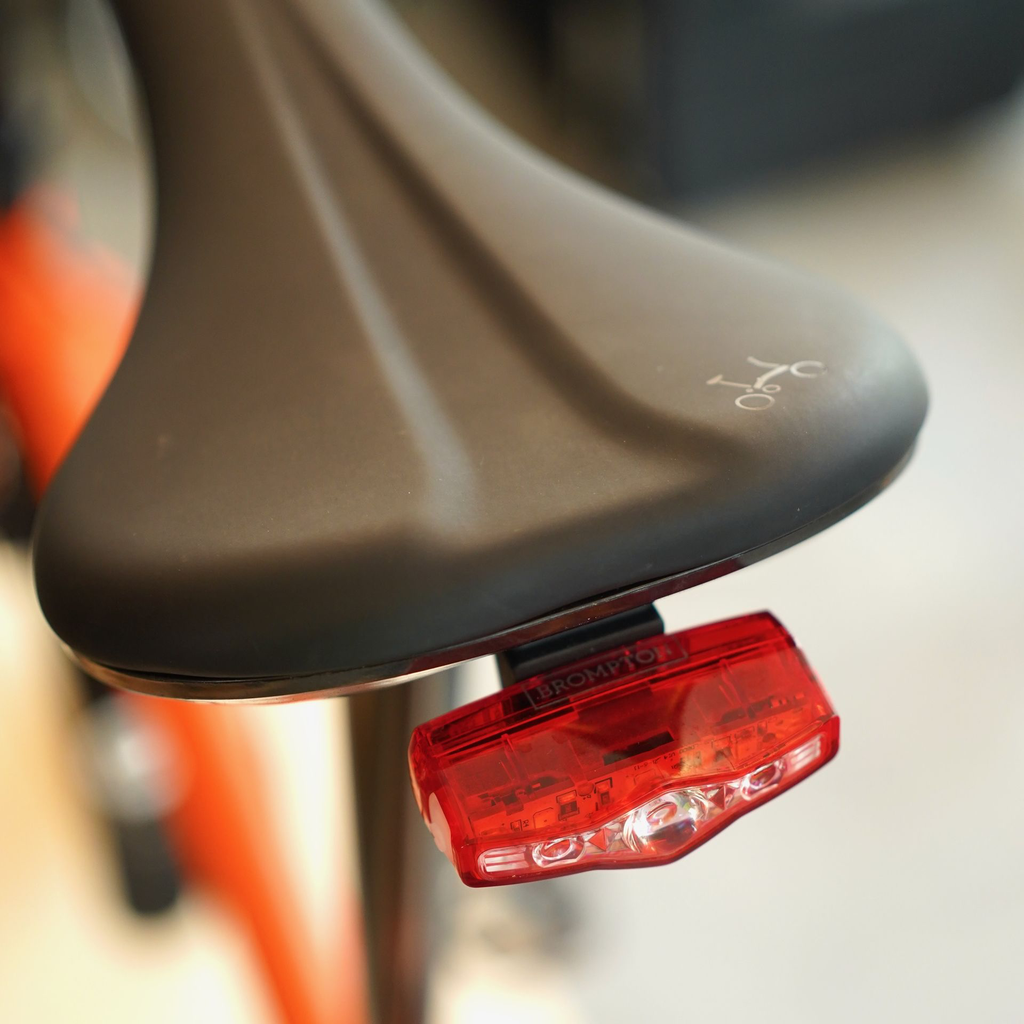

• G Line
• T Line
• Some but not all A line / B75

If you have a non-compatible saddle it is possible to fit this light using the Cateye saddle rail mount

Note: Brompton saddles made before mid-late 2016 time do not have the mount point and are unfortunately not compatible with this light / mount bracket combination

Non-Brompton saddles (e.g. Brooks / Fizik) are not compatible with this rear light set

Charging the light:

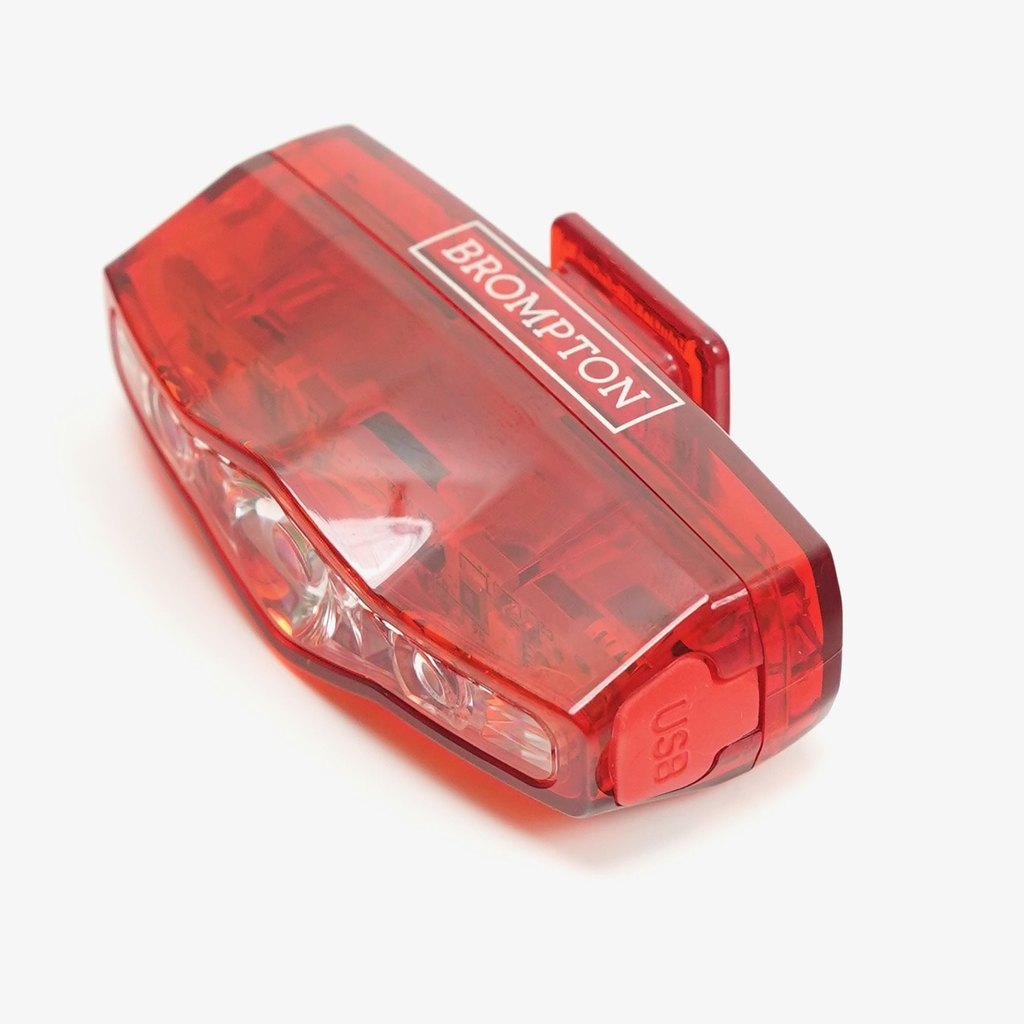

The battery is charged using a micro USB cable (included) - accessed by lifting the red cover on the side of the light

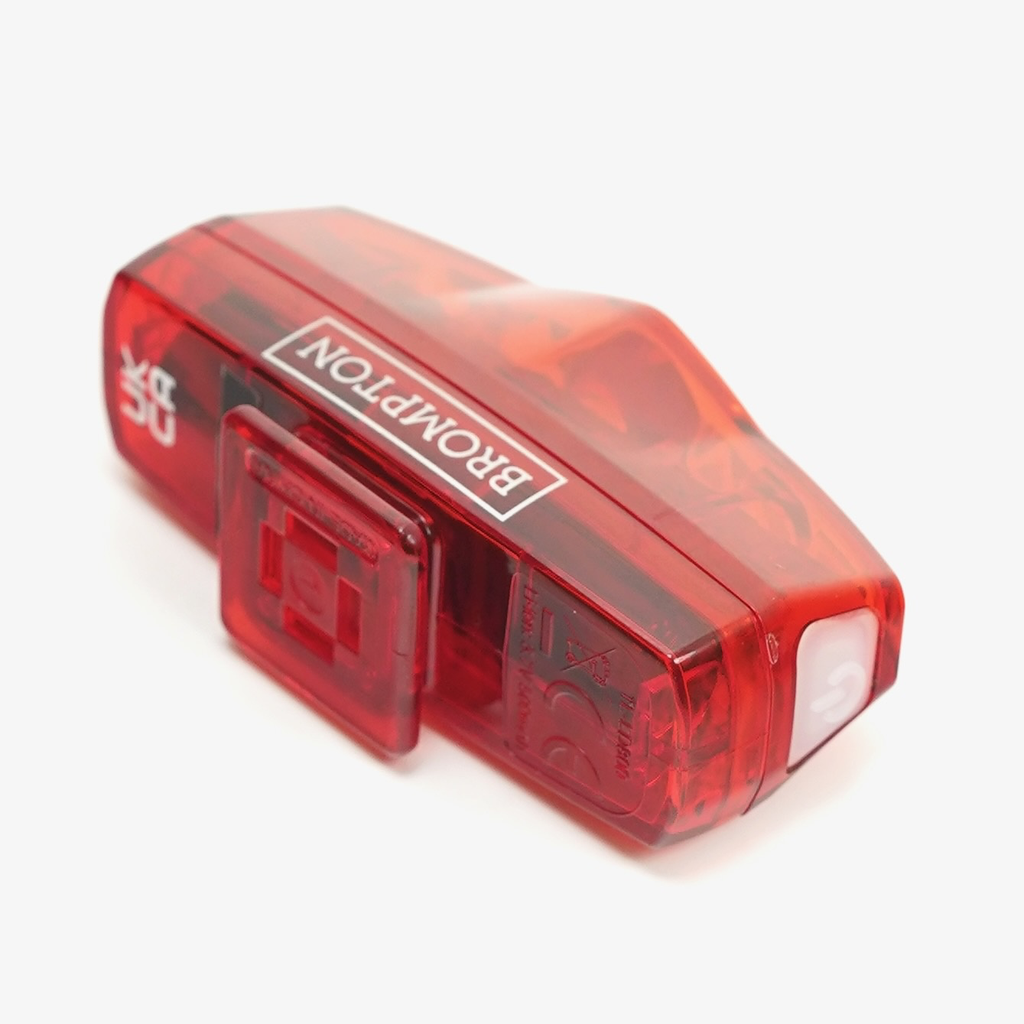

When charging, the power button is illuminated - this will go off when fully charged.

It is recommended to fully charge the light before first use

Note that when the battery is running low the light mode will change to flashing - to extend runtime

Charging time is approx. 2 hours

Please ensure the rubber cover is replaced after charging to avoid dirt / water getting into the charging port
