Brompton superlight bottom bracket cups

Brompton superlight bottom bracket cups

Introduced and used as standard on the Brompton T Line folding bike - 30mm BSA bottom bracket cups from FSA

Note: If fitting to a Brompton steel frame, ensure that the bottom bracket shell (where the Bottom bracket screws into) is faced (made level) and re-tapped (the thread) before fitting

If you are unsure - please consult a Brompton dealer

These come as standard with the Brompton super light crank set

Made for Brompton by FSA (Full Speed Ahead)

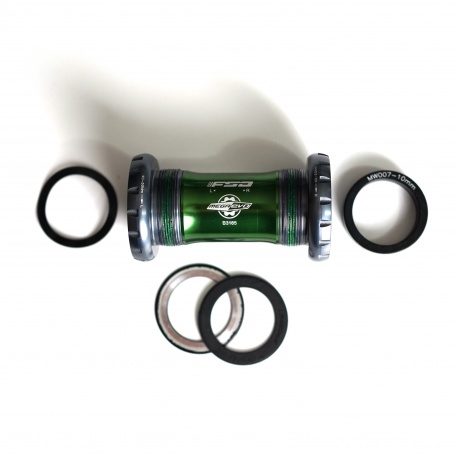

Packet contents (from left to right):

• Crank Wave Washer
• Left hand cup - marked L
• Bottom bracket sleeve - marked B3185
• Right hand cup - marked R
• Crank arm spacer (10mm) marked MW007
• 2 spare bearing seals
• Fixing / installation instructions

Bottom bracket installation

Grease both bottom bracket cups before installing with a good quality grease (this will make future removal easier and help prevent water getting into the bottom bracket shell)

Tighten to 40-50Nm (that is tight) using the correct MegaEvo socket tool and preferably a torque wrench. Ensure that the tool is properly engaged so that it doesn't slip

Bottom bracket removal

Before removing the bottom bracket from your Brompton, you will also need to remove the crank arms (this whole process will be easier if you have a workstand)

Once the crankset has been removed use the correct FSA MegaEvo socket tool to remove the bottom bracket cups

The left side (as you sit on it) needs to be turned anti-clockwise to remove
The right side (as you sit on it) needs to be turned clockwise to remove

They may be very stiff!

Make sure the tool is engaged properly to prevent it slipping

Weight: approx. 104g

Brompton Q part code: Q102705
Brompton part number: 9042340
