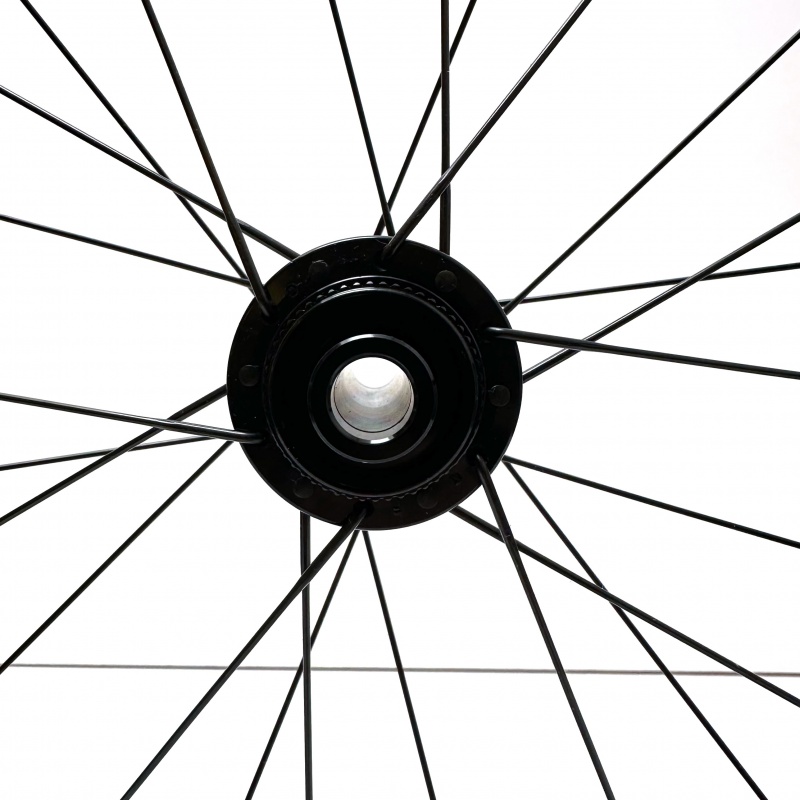

Brompton G Line 20 inch front wheel - Standard

Brompton G Line 20 inch front wheel - Standard

This is the 20 inch front wheel for the Brompton G Line and G line electric, excluding fixings, it comes taped ready for tubeless conversion

Key features:

• 24 spokes
• 6mm presta valve hole
• Taped ready for tubeless use
• Single butted spokes
• Double walled rim with clincher
• All black, spokes, hub and rim
• Weight approx 700g
• 100mm OLD hub for center lock disc rotors
• Rim Internal rim 22.6mm
• Rim external 28mm

Brompton Q part code: Q103115

Removal

To remove your front wheel:

• undo the axle bolt using a 6mm Allen (Hex) key
• Remove the axle bolt completely from the wheel
• Guide the wheel clear of the fork
• Do not squeeze the brake lever while the wheel is out as this will close the brake pads

Fitting

The foot the wheel:

• Ensure the wheel is the correct way round with the brake rotor ready to fit into the pads on the left had side of the fork
• Guide the wheel in place
• Fit the axle from the righthand side of the bike to thread in place, tighten to 11Nm

The spokes needed are - Q103652, GSPOK-174-DB and the rim, GRIM-24
