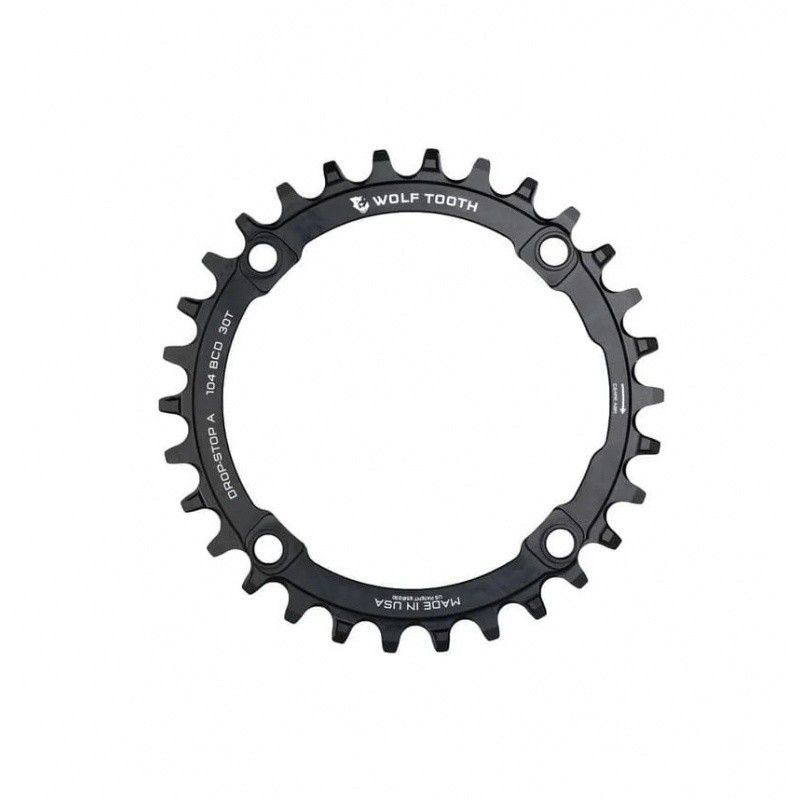

Wolf Tooth 104 BCD Chainring - 30 tooth

Wolf Tooth Drop-Stop chainring - 30T 104 BCD

This chain ring has been optimised for mountain bikes, the narrow wide profile is the best performing non-drop for 1 x set ups (so Wolf Tooth say)

Wolf Tooth has designed the right side of the tooth to be extra wide, to ensure maximum contact with the chain, spreading the load over a larger area. This minimises wear on the tooth.

The left side, meanwhile, guides the chain on its passage to the chainring, but doesn't have to transmit load and is narrower than the roller pin on the chain. Since wear isn't an issue on this side of the tooth, Wolf tooth has removed material to create a channel that sheds mud. More clearance means less friction and less chance of mud causing a dropped chain.

• Fits any 104 BCD crankset
• Carries Wolf Tooth's traditional wide/narrow design, developed to hold the chain fast by maximising contact on the right side of the tooth and minimising wear, while the left side sheds debris and minimises friction
• Prevents premature ring and chain wear that can come from non-optimised profiles
• Made in the USA

Compatibility

• Fits any 104 BCD crankset
• Compatible with all 9, 10 and 11 speed chains, as well as 12-speed from KMC, Connex, Wipperman, Campagnolo, SRAM Eagle and SRAM Road and Transmission (T-Type) Flattop chains
• This chain ring 104 x 30t – use 10mm bolts (the larger 104 x 32t, 34t, 36t, 38t – use 6mm bolts)
• If using a bashring, you will need 10mm bolts (most stock bolts on 3x cranksets are 8mm)
• 104 BCD chainrings work on many older 2x Shimano cranksets (XT, SLX or Deore)
