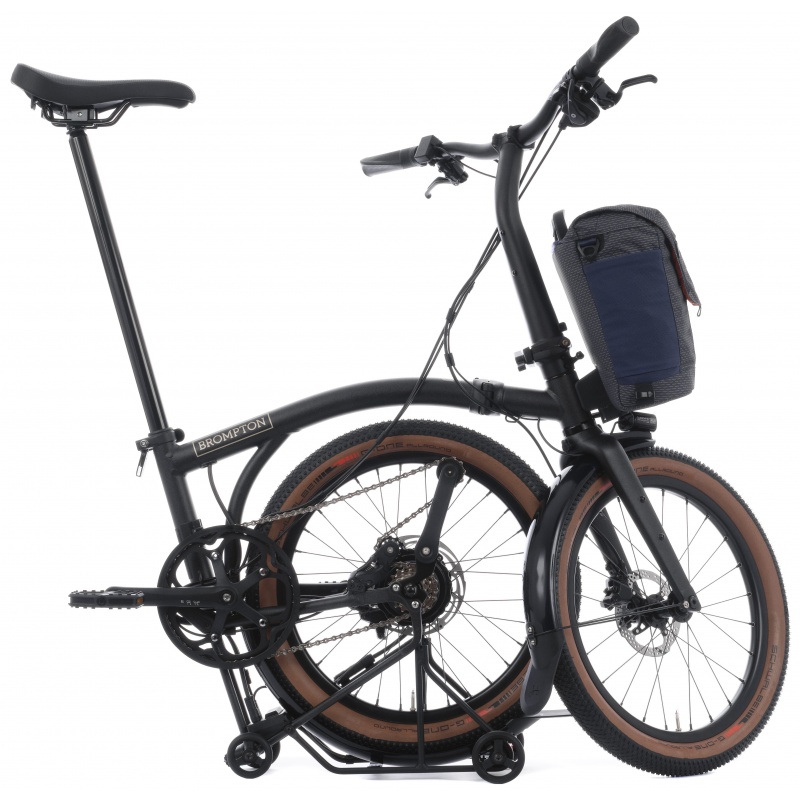

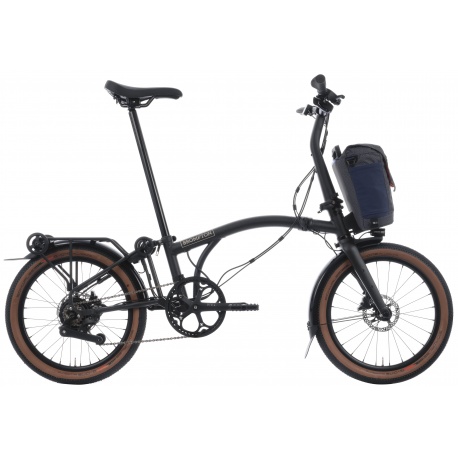

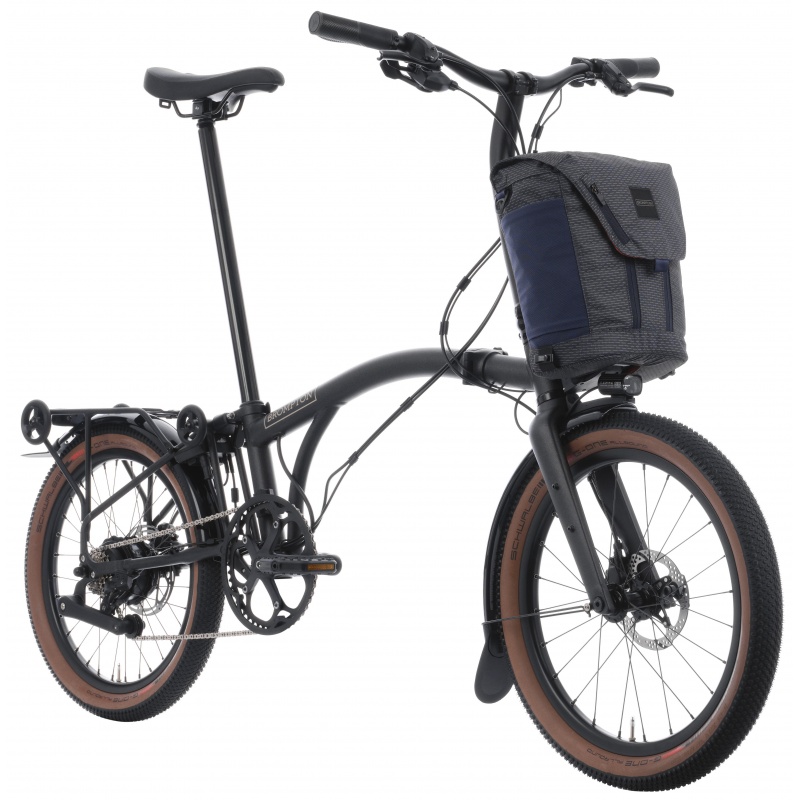

Brompton G Line Electric - M - Black

1. Frame

Main frame: Steel
Rear frame / triangle: Steel
Front forks: Alloy
Handlebar stem: Alloy

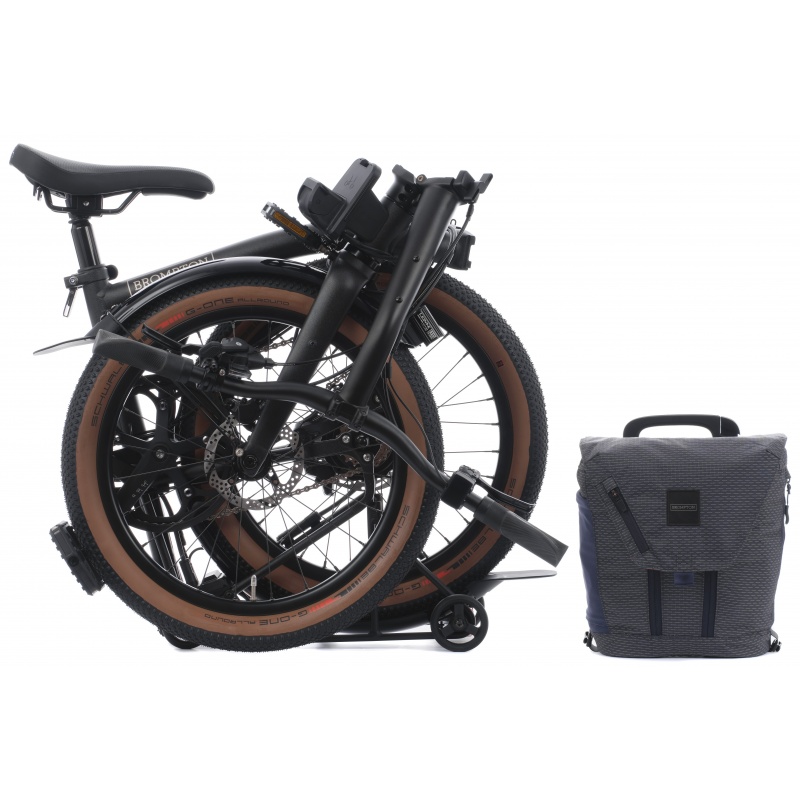

Folded size: 71cm wide x 68cm tall by 38cm deep (approx)

2 Colour

Main frame: Space Black
Rear frame: Space Black
Handlebar stem: Space Black
Front forks: Space Black
Decal: TBC

3. Size

Medium (also available in Small and Large)
The G Line Electric only has one handlebar type - ride position is dictated by the stem length and seat post length
Handlebar width - 65cm

4. Gears / drivechain

4 speed Brompton derailleur gear system (11T/13T/15T/18T sprockets)
50T front chainring - black (we can change to 44T to reduce gearing if you would prefer)
Brompton advance chain with connecting link
Flat platform pedals (the right one is removable)

5. Front luggage system

The G Electric line comes with a the front carrier block fitted
The bikes comes complete with the Essentials bag containing the battery

6. Mudguards / Rack

This bike comes with black mudguards and rack

7. Roller wheels

Large new G Line roller wheels help keep the bike stable when folded

8. Tyres / Wheels / Brakes

Tyres
Schwalbe G One tyres with tan wall (ETRTO size 54-406) - tubeless ready
Low rolling resistance and good puncture protection

Wheels
20 inch wheels
The wheels have black hubs, black spokes and black rims (the braking surface is still silver)
Presta / racing type valve

Brakes
TRP Hydraulic disc brakes

Brake Rotors:
TRP Centrelock 25 - 140mm front
TRP 6 bolt - 160mm rear

About the TRP Centrelock 25 rotors

TRP’s slotted rotor is designed for the most demanding riders in the most demanding conditions. The aluminium spider gives superior heat dissipation and excellent stiffness. Six recessed slots create channels to allow water, mud, and other debris trapped between the pad and rotor to escape during braking. When debris gets trapped between the pad and rotor braking power is dramatically reduced, these recessed slots maintain a more consistent brake feeling in mixed conditions

9. Saddle

Brompton saddle

10. Seat height

An extended length seatpost is standard on the G Line medium size

11. Suspension

Along with the new G Line comes a new advance suspension block

12. Lighting / reflectors

Lezyne E115 front light
Busch and Muller rear light
