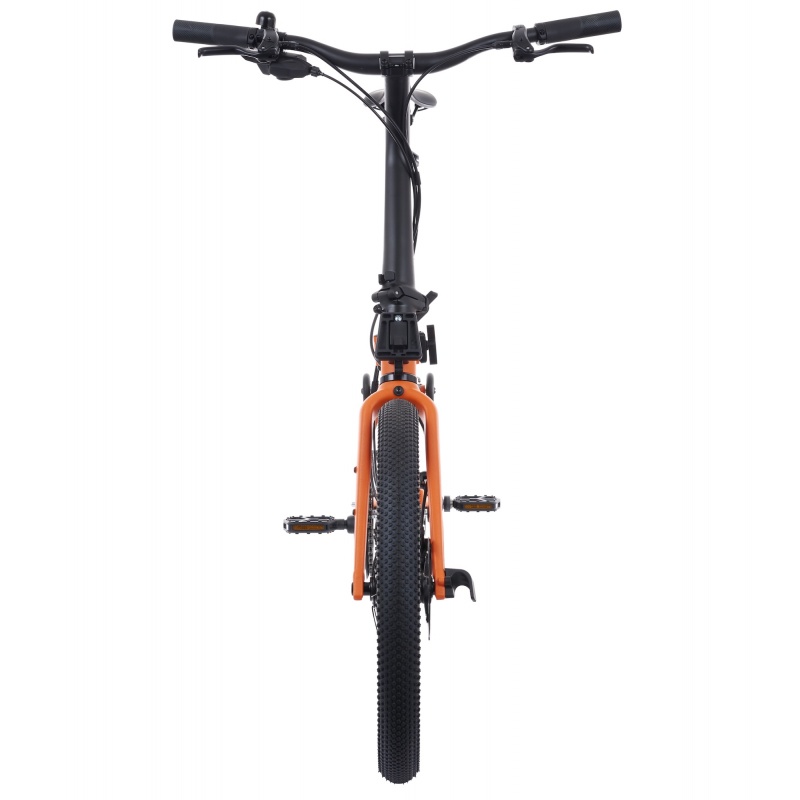

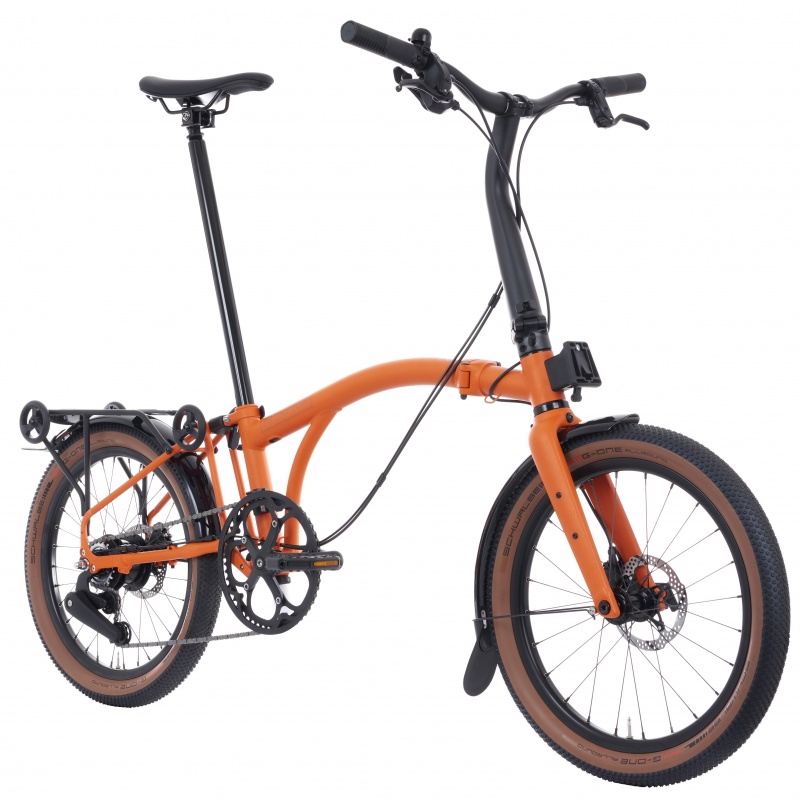

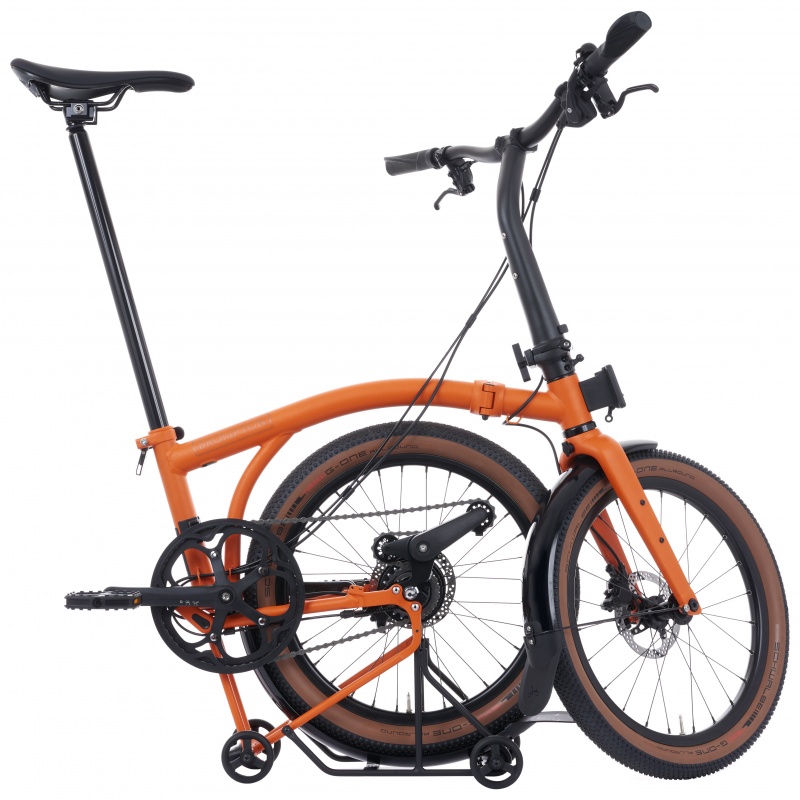

Brompton G Line - Small - Adventure Orange

1. Frame

Main frame: Steel
Rear frame / triangle: Steel
Front forks: Alloy
Handlebar stem: Alloy - size: medium

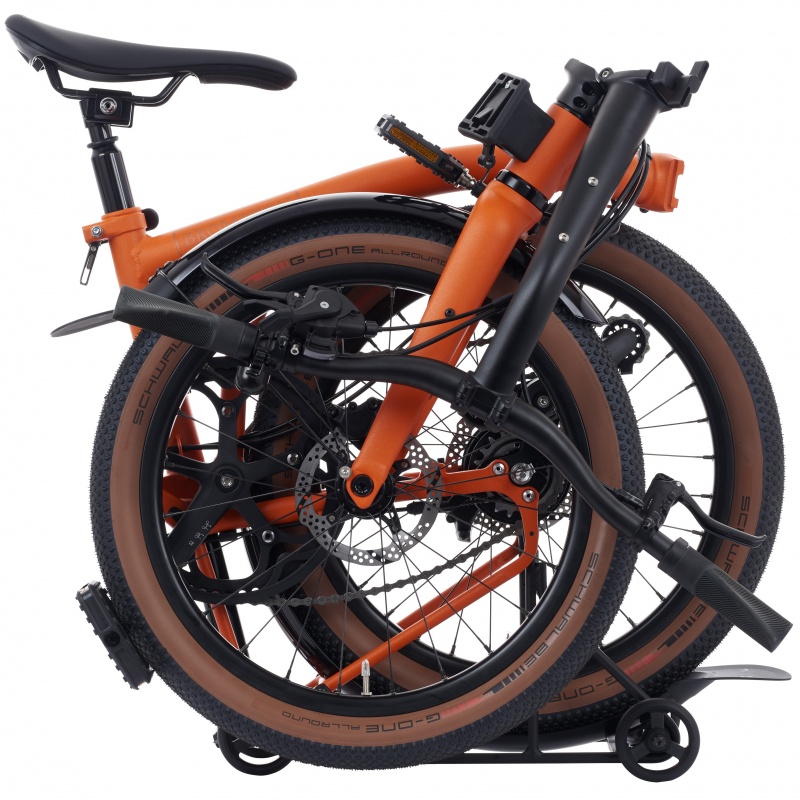

Folded size: 71cm wide x 68cm tall by 38cm deep (approx)

The G Line handlebar stem has water bottle fixing points so you can keep a water bottle close at hand for easy hydration

The front fork has another fixing points so you- ideally to store a low security cafe lock

It’s possible to store a G Line toolkit in the tube of the frame (available separately)

A puncture repair kit / spare tube can be carried in a puncture pouch which fits neatly in the main frame (also available separately)

Note: It’s only the handlebar stem and Seatpost which differ between the small / medium / large size G Line - everything else is the same

2 Colour

Main frame: Adventure Orange
Rear frame: Adventure Orange
Handlebar stem: Adventure Orange
Front forks: Adventure Orange
Decal: Gold

3. Size

Small (also available in Medium and Large)
The G Line only has one handlebar type - ride position is dictated by the stem length and seat post length
Handlebar width - 65cm

4. Gears / drivechain

8-speed Shimano Alfine hub gear system with single 20T sprocket
54T front chainring - black (also available with 50T or 44T option to make hill climbing easier- can be amended at no extra cost)
Brompton advance chain with connecting link - 114 links
Flat platform pedals (the right one is removable)

5. Front luggage system

The G line comes a the front carrier block fitted
It can take all luggage from previous generations of Brompton folding bikes

6. Mudguards / Rack

This bike comes with black mudguards and rack

7. Roller wheels

Large new G Line roller wheels help keep the bike stable when folded

8. Tyres / Wheels / Brakes

Tyres
Schwalbe G One tyres with tan wall (ETRTO size 54-406) - tubeless ready
Low rolling resistance and good puncture protection

Wheels
20 inch wheels
The wheels have black hubs, black spokes and black rims (the braking surface is still silver)
Presta / racing type valve

Brakes
TRP Hydraulic disc brakes

Brake Rotors: TRP Centrelock 25 - 140mm

About the TRP Centrelock 25 rotorsTRP’s slotted rotor is designed for the most demanding riders in the most demanding conditions. The aluminium spider gives superior heat dissipation and excellent stiffness. Six recessed slots create channels to allow water, mud, and other debris trapped between the pad and rotor to escape during braking. When debris gets trapped between the pad and rotor braking power is dramatically reduced, these recessed slots maintain a more consistent brake feeling in mixed conditions. Upgrade the stopping power and heat dissipation by increasing the size of your rotor giving you more surface area and leverage.

9. Saddle

Brompton saddle - 147mm wide
(We can change this to a Brompton wide saddle - 167mm wide if you prefer)

10. Seat height

Standard seatpost

11. Suspension

Along with the new  Line comes a new advance suspension block

12. Lighting / reflectors

Front and rear reflectors are included

It's easy to retrofit battery lighting such as:

• Spanninga Solo rear light - replaces rear reflector
• Lezyne front light (and bracket)
• Brompton saddle mounted Cateye VIZ 150 rear light
• Brompton Be Seen light set
