Brompton G Line Front Battery Light - Lezyne 500XL with bracket

Brompton G Line Front Battery Light

This is a rechargeable batter front light for your G Line, the key features are as follows:

• Mounts to your G line front fork
• Bright with up to a 500 Lumen output and daytime flash
• IPX7 water resistant rated
• It has a maximum rub time of 20 hours and is rechargeable with a USB cable (not provided)
• Machined aluminium body
• Battery capacity - 650 mAh

Note this light and bracket are not compatible with A, C, P or T line Brompton bicycles

Do not submerge the light into water, if you do dry it out thoroughly

Brompton G Line front light package contents:

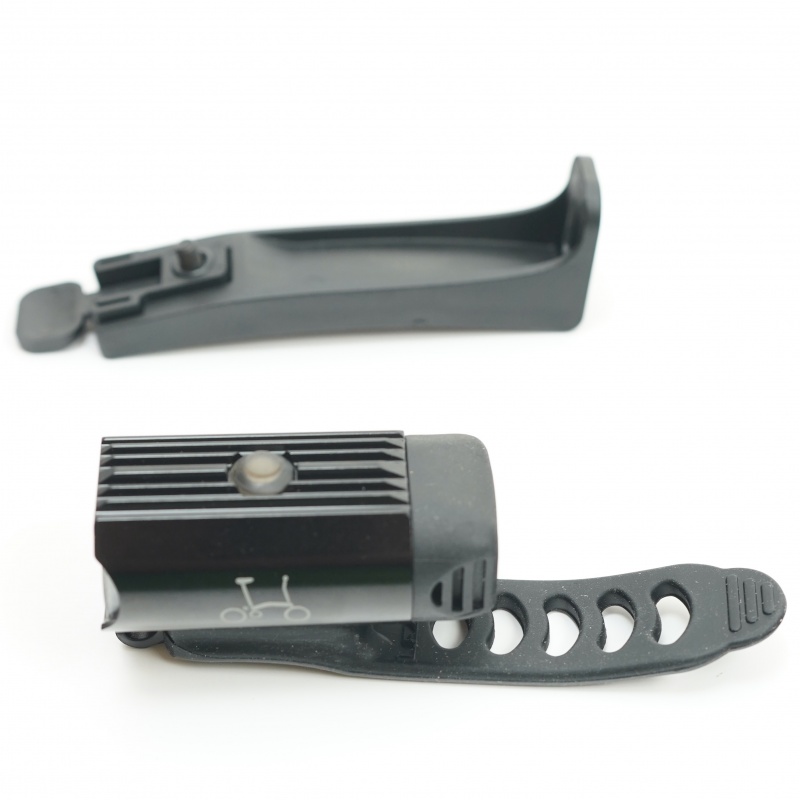

• Brompton Lezyne 500XL light
• G line fork mounting bracket
• Fitting instructions

Brompton G Line front light fitting instructions:

To fit the bracket to your G Line:

• Remove the handle bar mounting bracket from the light - using a 4mm Allen key / hex wrench (not 9Nm as it says in the instruction data sheet)
• Fit the O-Ring to the plastic mount and fit the mount to the underside of the light
• To fit the bracket to the fork: remove the pedal holder and bolt by unscrewing the pedal holder with a 4mm Hex key
• Fit the washer to the bolt, then insert the light bracket into the front fork, tighten the to 3Nm
• To fit the light to the bracket - push until you hear a click
• To remove push the lever on the light up from the bottom

Brompton G Line front light operation:

To operate:

• Press the on / off button for 2 seconds
• To cycle modes press the on / off buttons

G Line front light modes and run times:

Note - times are approximate (as provided by the supplier - not tested by us!

Battery indicator:

Charging your Brompton G Line front light:

• Fully charge the light before first use
• To charge, turn off the light
• Remove USB protective cover
• Insert USB charging cable (not provided) / USB charger
• While charging the charge LED light will flash green
• The light takes 3 - 4 hours to charge and the light will glow green when fully charged
• Once charged remove from the USB charger and replace the protective cover

We made a short video about this light - how to install / charge and lighting modes

Brompton Q Part code: Q103714
