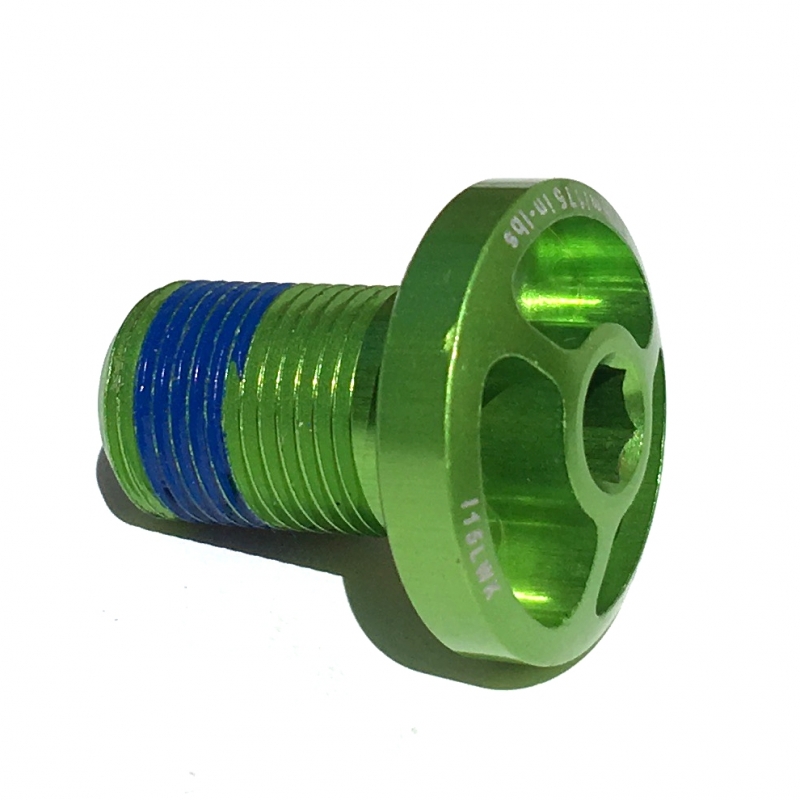

Shoulder bolt GREEN / fine thread for Intense bikes

These GREEN coloured intense fine thread shoulder bolts look more orange to us!

There are a few types of shoulder bolts used on the Intense range of bikes - so please check carefully before installing. If in doubt, just give us a call.

This GREEN / fine shoulder bolt is for the following Intense frames:

Note: these frames use three fine thread shoulder bolts in total - one securing the top link to the main frame and two securing the bottom of the link to the seat stay.

Intense Tracer 275 Carbon
Carbine 29 (2014+ frames with forged top link. Older Carbine 29 frames with CNC'd top link use two coarse thread shoulder bolts at the lower end of the top link).
Spider 29C (2014+ frames with forged top link. Older Spider 29C frames with CNC'd top link use two coarse thread shoulder bolts at the lower end of the top link).
Intense M16 Alloy & Carbon - introduced for 2016
Intense Spider 275
Intense Tracer 275 Alloy (2015+)
Intense Uzzi 275 - introduced 2016

This black / fine shoulder bolt is for the following Intense frames - these frames use one fine thread shoulder bolts in total - one securing the top link to the main frame and two course thread bolts (not these ones) securing the bottom of the link to the seat stay:
Intense Carbine SL
Intense Carbine 275

Aslo available in Black - 130785, Orange - 130785OR, Red - 130785R

New part number: 130785D
Old part number: 130129
