Intense flip chip - centre hole - left hand

Intense flip chip - centre hole - left hand

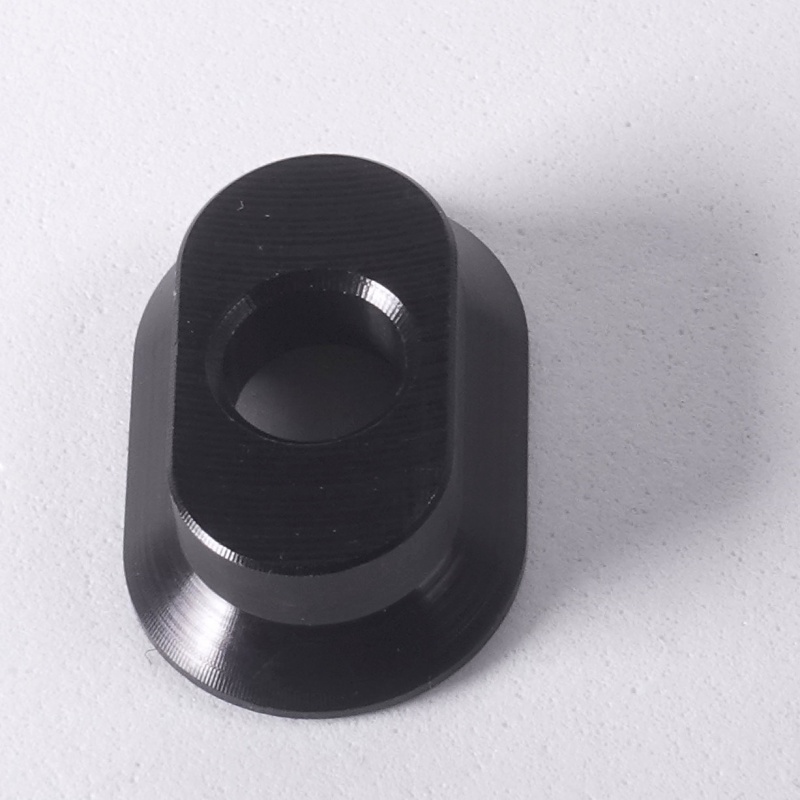

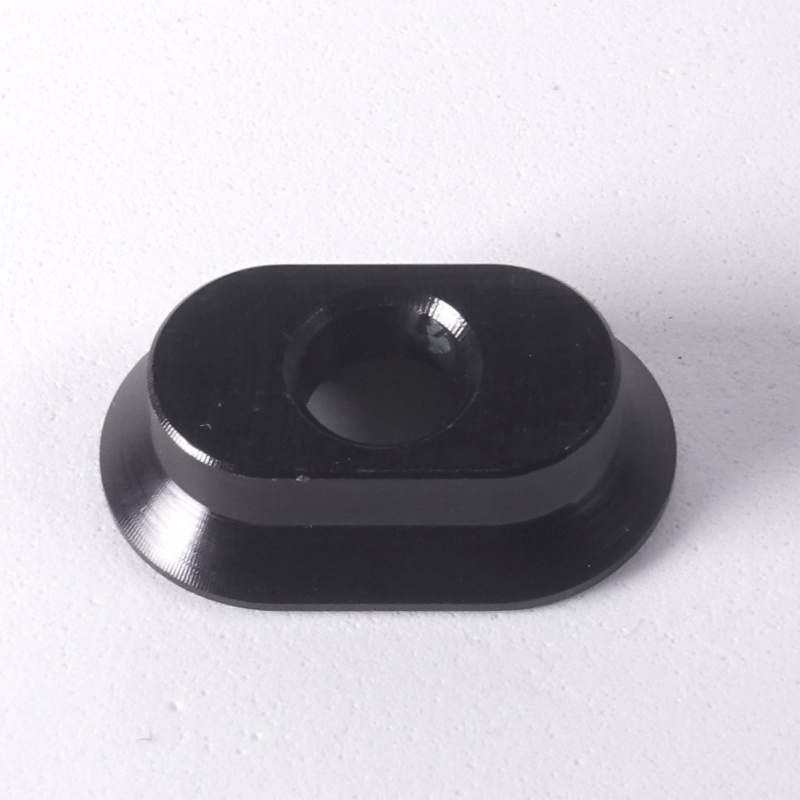

Intense spare part: Intense flip chip - centre hole - left hand

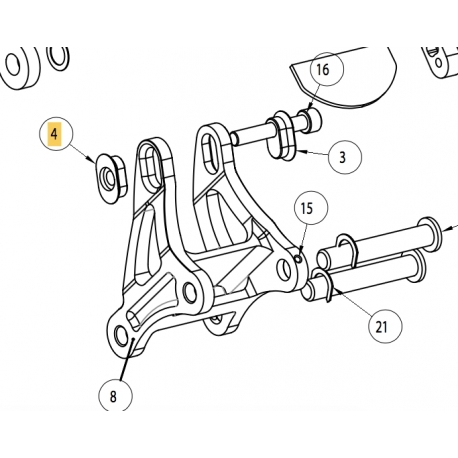

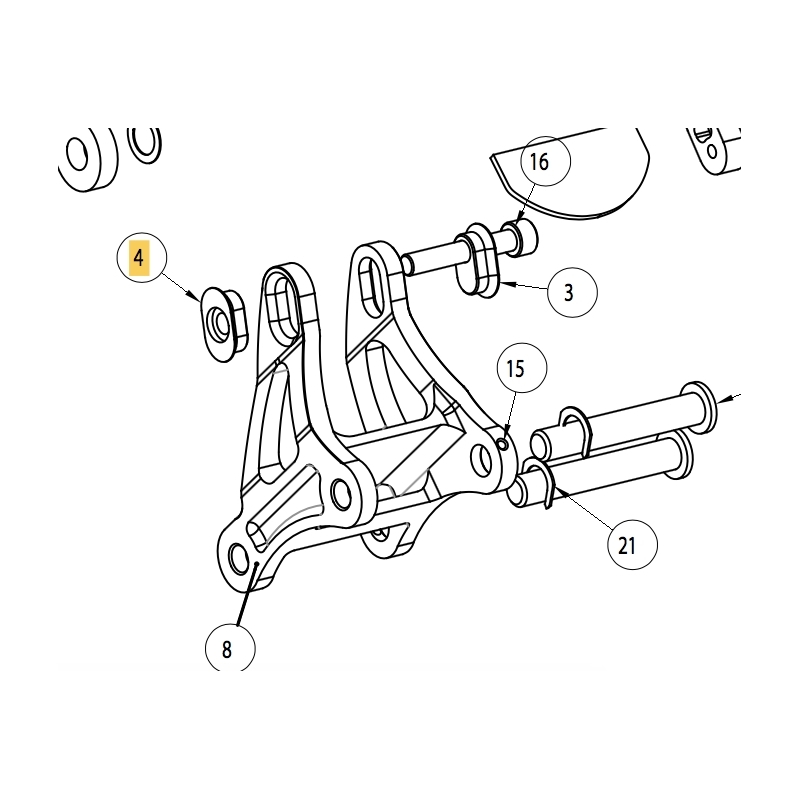

Note: This is the left hand as you are sitting on the bike, number 3 in the diagram shown (not the highlighted no 4!) - the diagram looks back to front!

As used on the following intense bikes:

2014 Intense M9

The bolt feeds through from the left hand side - this flip chip is not threaded - into the threaded equivalent on the right hand side

Colour: Black

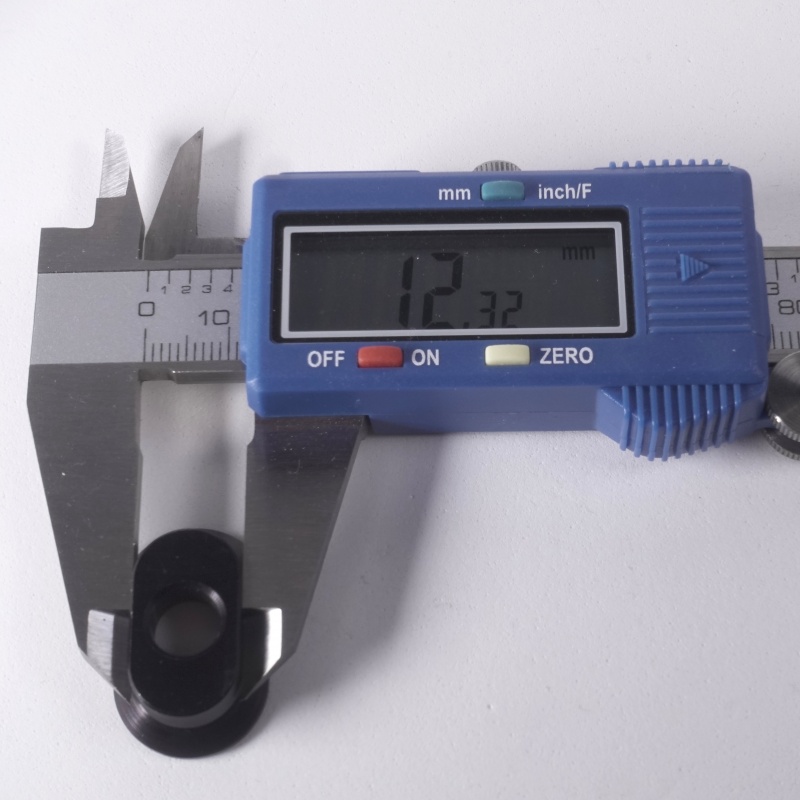

Approx internal width: 12.3mm

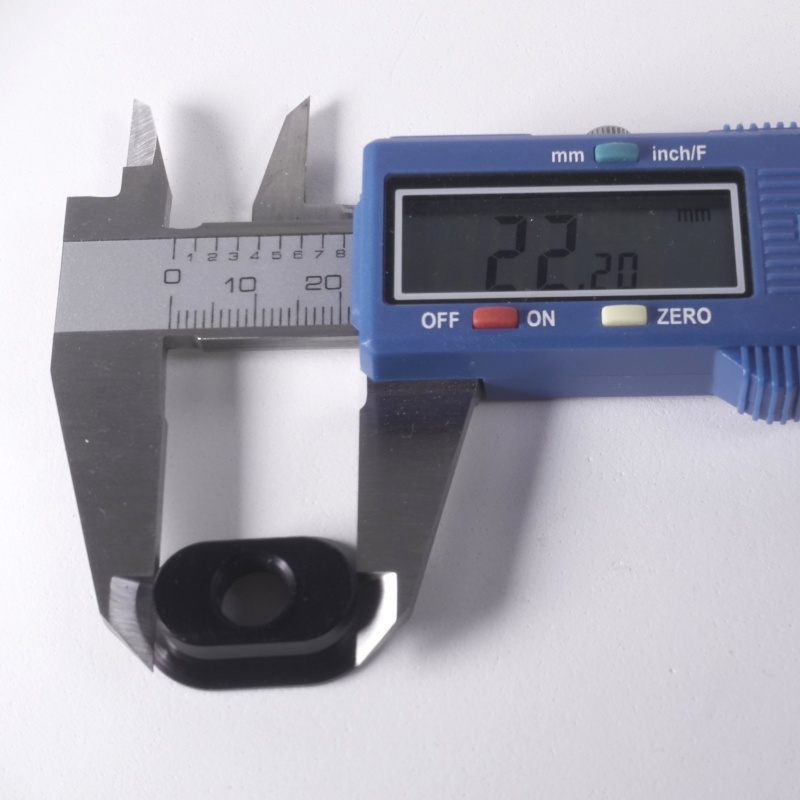

Approx internal length: 22.2mm

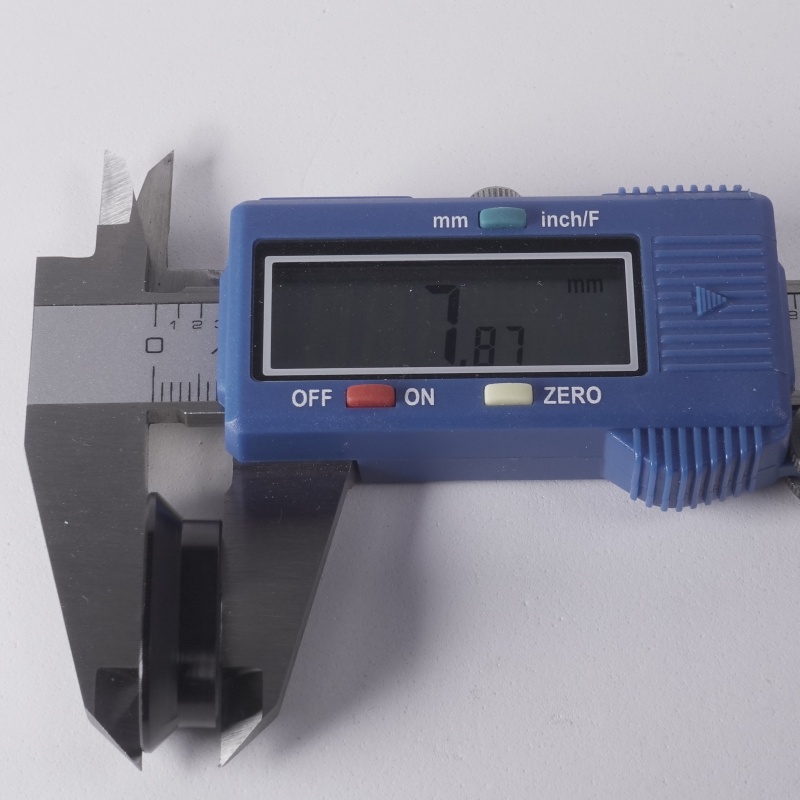

Approx thickness: 7.8mm
* we have found this to be quite variable
