Intense Tracer Upper Link Hardware Kit (2022 onwards)
IT150134
Intense Tracer Upper Link Hardware Kit (2022 onwards)
We have 1 left in stock
- Write a review
More info
Intense Tracer Upper Link Hardware Kit
This is the upper link hardware kit for the following Intense models:
| Model | Year |
| Intense Tracer 29 Pro | 2022 - 2023 |
| intense Tracer 29 Expert | 2022 - 2023 |
| Intense Tracer 279 Pro | 2022 - 2023 |
| Intense Tracer 279 Expert | 2022 - 2023 |
| Intense Tracer S | 2022 - 2023 |

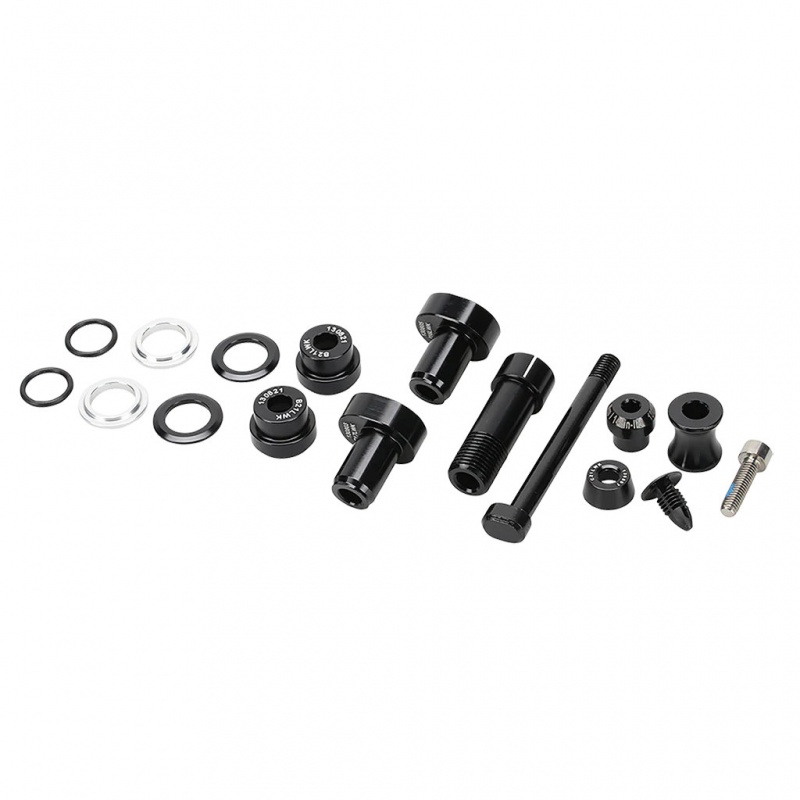

The kit contains the following parts:
| Part code | Quantity | Description | Note |
| 130813 | 1 | Bolt D-Lock 2017 Tracer 275 | |
| 130803 | 1 | Reducer D-Lock 2017 Tracer 275C | Embossed code on part |
| 130835 | 2 | Cap Bearing Carbine SIL | |
| 140044 | 2 | Ring Oh 13.8 x 2.4mm | |
| 130821 | 2 | Spacer 2017 C29 Reducer F/Ring Groove | Embossed code on part |
| 130895 | 1 | Spacer Top Link MY22 Tracer 279 & 29 | Embossed code on part |
| 130805 | 1 | Reducer Drive Side 2017 Tracer 275C | |
| 130814 | 1 | Nut Drive Side SS 2017 Tracer 275 | |
| 410032 | 1 | Bolt SHCS M6 x P1.0 x 22L Titanium | |
| 130807 | 1 | Spacer Cone Adjuster 8.3mm (Short) Black | |
| 130863 | 1 | Collet Bolt Top Link/Ft Triangle | |
| 130765 | 2 | Cap Bearing 24mm OD S275C Black | |
| 140038 | 1 | Plug Trim 15mm |
Please see the attached technical diagram for parts locations and any questions please ask us :)
Colour: Black
Intense Part Number: IT150134
Reviews
Have a question?
If your question has not yet been answered here, use the form below to ask something
Related items / accessories
Download
Data sheet
| Origin | Taiwan |
| Comm Code | 87149990 |
