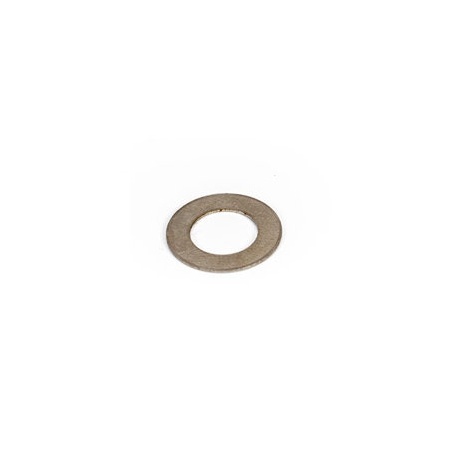

Orbea front triangle shock bolt washer

Orbea front triangle shock bolt washer

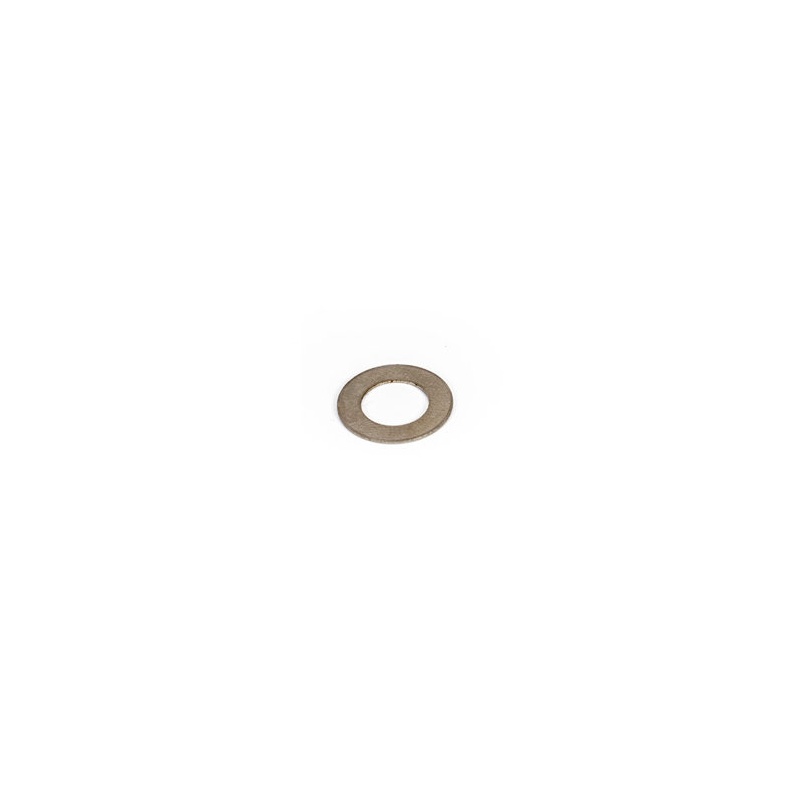

Orbea front triangle shock mounting bolt washer - 8mm x 14mm x 0.5mm

This shock bolt washer is compatible with the following bikes:

Orbea Occam 2016-2019 (TR and AM) carbon frame
Orbea Occam 2016-2019 (TR and AM) aluminium frame

In the Occam this small bolt washer is used in conjunction with a bolt - 12300023- and shock nut - 12310020 to mount the front of the shock to the frame

Orbea Wild FS (Electric 2018)

As with the Occam the Wild FS uses this small bolt washer in conjunction with a bolt - 12300023- and shock nut - 12310020 to mount the front of the shock to the frame

Orbea Rallon 2018

For the Orbea Rallon 2018 model this washer is used with the shock mount bolt, part code 12300030
It is No 5 in the exploded parts view diagram

If you are not sure if this is the right part for your bike - go to the Orbea spare parts section of their website and enter your bikes serial number.

On the Orbea website it is know as:
8x14x0,5 OCCAM WASHER
ARANDELA 8x14x0,5 OCCAM
WASHER 8x14x0,5 OCCAM

Orbea part number: 12320003
REF: 15F-0067
