Orbea Occam TR Shock Extender Pivot Kit

Orbea Occam TR Shock Extender Pivot Kit

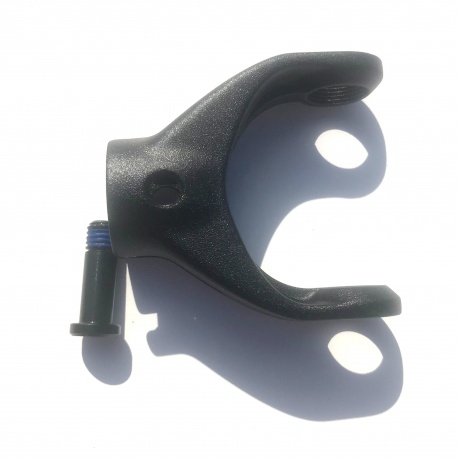

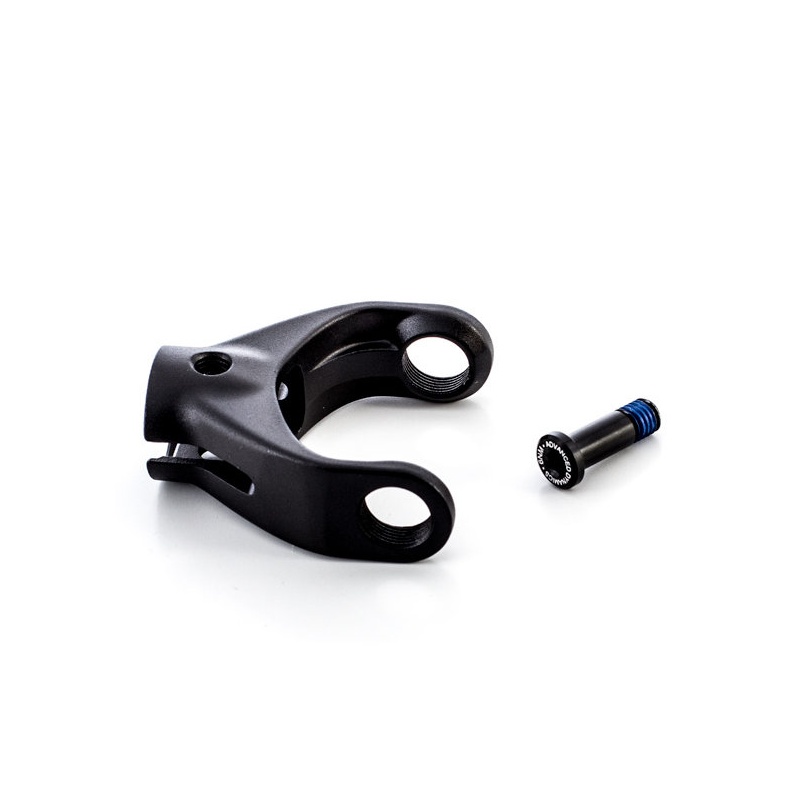

Shock extender and extender bolt (part numbers 12330004 and 12300025)

This kit is compatible with the following bikes:

Orbea Occam 2017/2018 (TR) aluminium frame
Orbea Occam 2017/2018 (TR) carbon frame

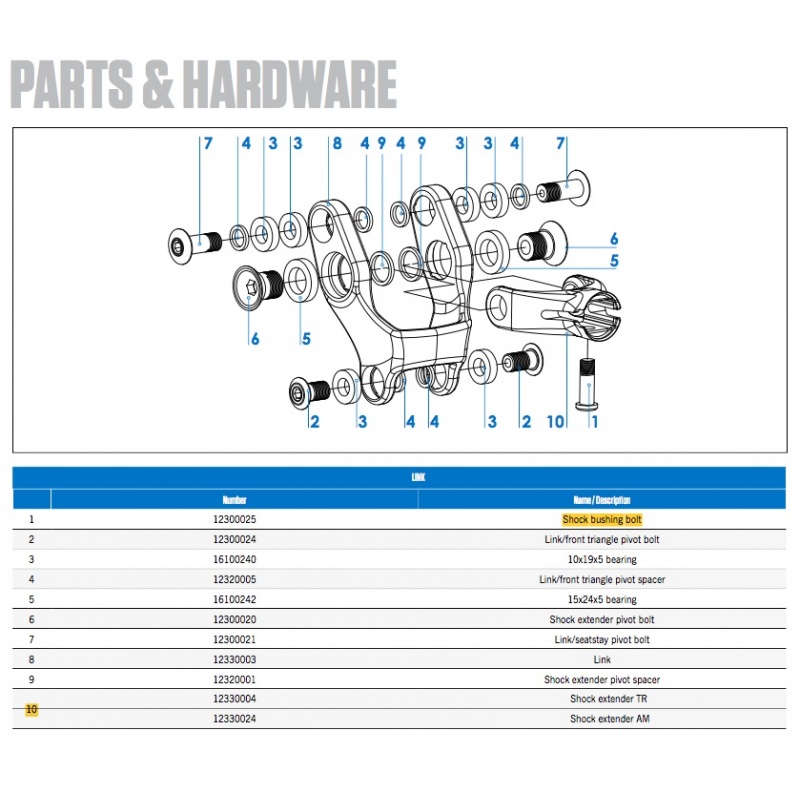

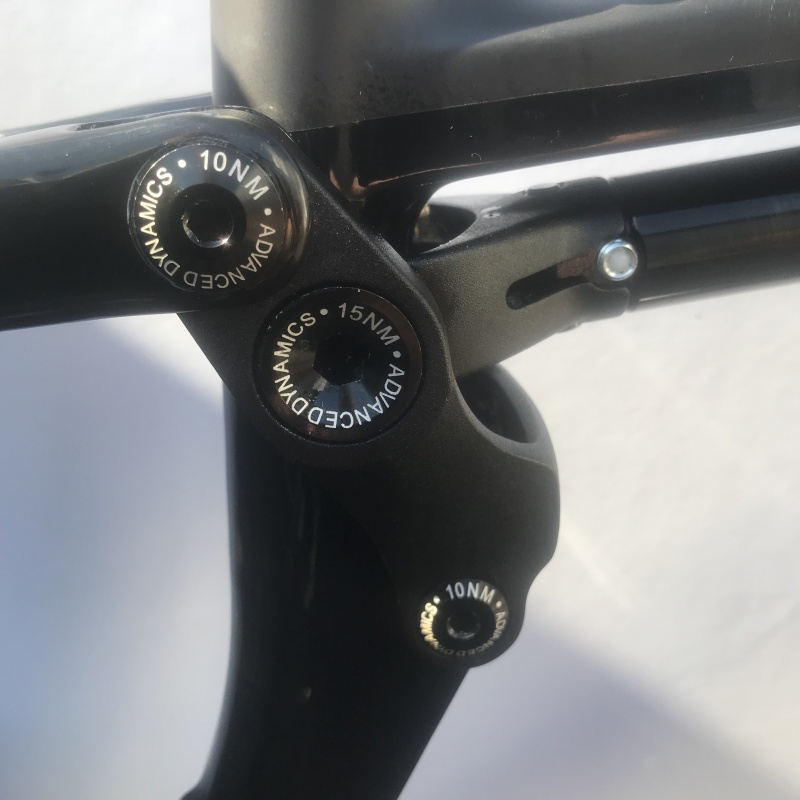

These are part numbers 1 and 10 in the exploded diagram, there is also a picture of the parts on the bike. The shock extender for the Orbea Occam AM is shiny in finish, this part is for the TR and has a matt finish.

If you are not sure if this is the right kit for your bike - go to the Orbea spare parts section of their website and enter your bikes serial number.

Known by Orbea as: KIT EXTENSION AMORT OCCAM M16
