Orbea Oiz main pivot axle kit

Orbea Oiz main pivot axle kit

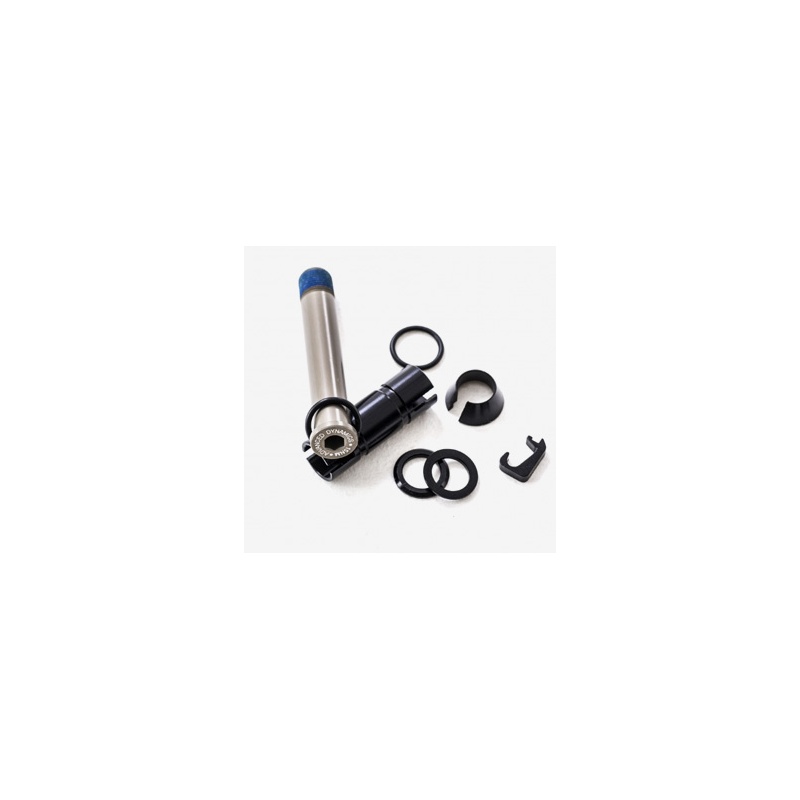

This is the main pivot axle kit where the rear triangle connects to the main frame. This kit is compatible with the following Orbea Oiz bicycles

OMP 2015 - 2019

OMR 2015 - 2019

This kit consists of the following parts:
Main pivot axle (No. 1 in the diagram)
Brake hose main pivot guide (No. 2 in the diagram)
Main pivot fixing cone (no. 3 in the diagram)
Main pivot bearing spacer 0-ring (No. 4 in the diagram) x2
Main pivot bearing spacer (No. 6 in the diagram)

To complete the installation you may also need to replace your main pivot bearings (Orbea code 16100242), you will need to order 2.

If you are not sure if this is the right kit for your bike - go to the Orbea spare parts section of their website and enter your bikes serial number.

Known by Orbea as: KIT PUNTO DE GIRO ENTRE BASE Y TRIANGULO DELANTERO NEGRO MODELOS OIZ

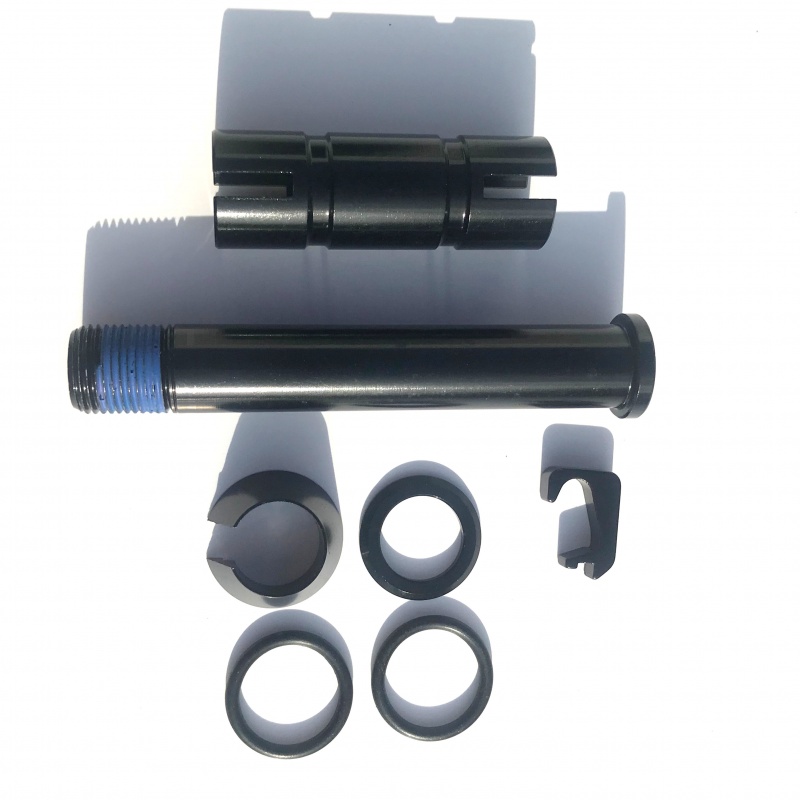

The part currently on Orbea's website has a gold/brass (ish) coloured axle bolt, this one is black

The old part code was 16100309
