Wellgo Removable SPD Pedals (double sided)

Wellgo Removable SPD Pedals

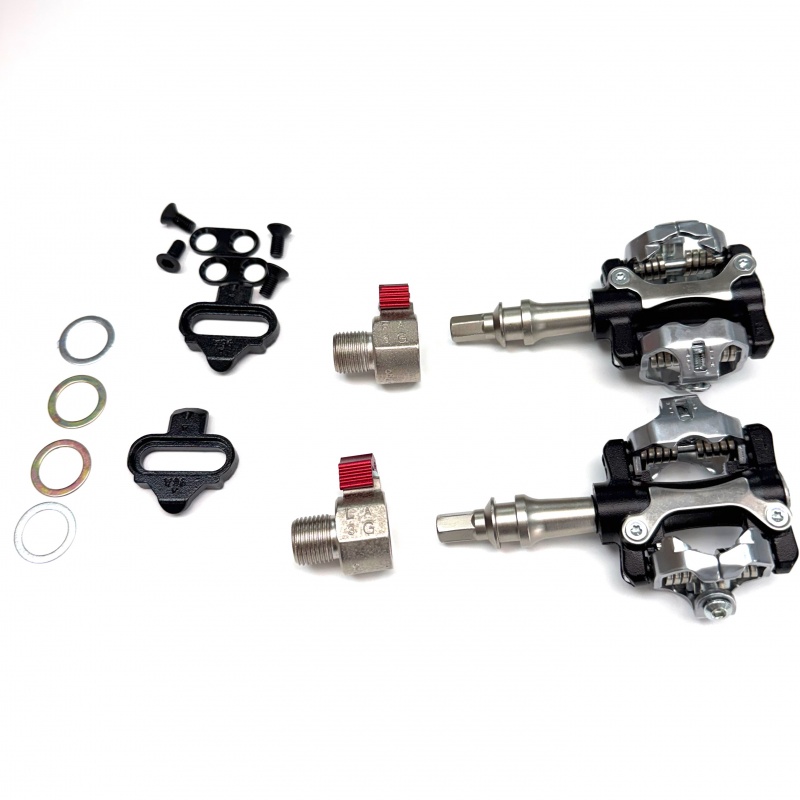

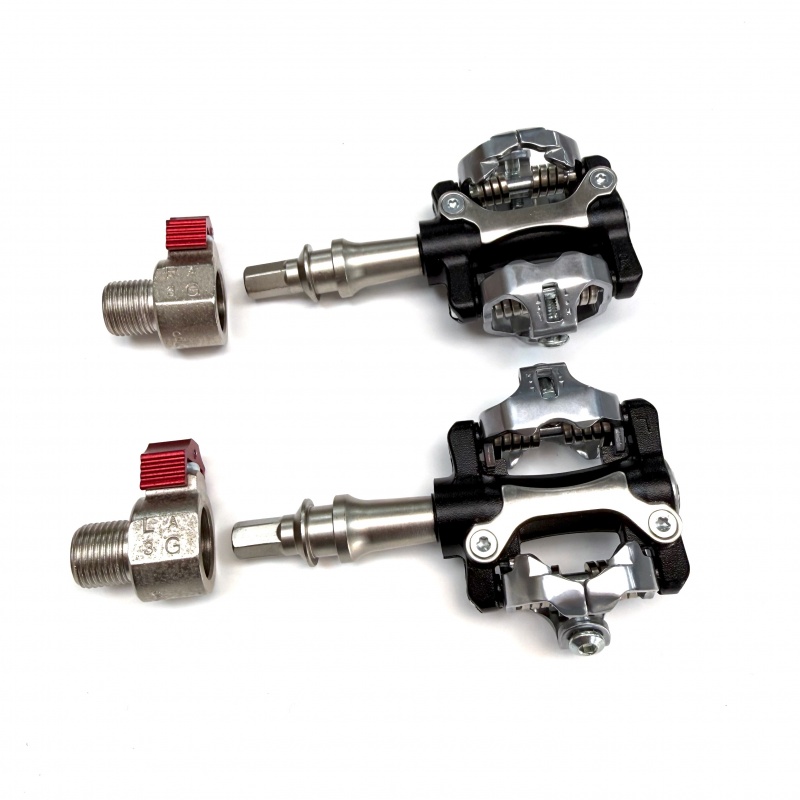

This is a pair of removable clipless SPD pedals from Wellgo, in the packet is the following:

• One pair of double sided removable SPD pedals
• One pair of Quick Release Devices
• 4 pedal washers
• Instructions on how to use / install

Installation of the Quick Release Device

1. Apply a good grade lubricant to the Quick Release Device
2. Install the pedal washer between Quick Release Device and the crank arm
3. Take note of the markings on the Quick Release Devices - the L is for the Left hand crank arm, the R is for the Right hand crank arm
4. Install the Quick Release Device using either a 21mm wrench or 8 mm Allen/ Hex key onto each crank arm
5. Tighten to 35 Nm using a torque wrench

Installation and removal of the pedal:

1. Pull the red tab on the Quick Release Device outwards
2. pull the pedal out of the Quick Release Device or push the pedal into the Quick Release Device

Fitting the cleats:

1. Install the cleats into your chosen show using the bolts provided
2. Practice clipping and un-clipping
3. These cleats allow for up to a 4 degree lateral movement

Weight: Pedals and Quick Release Device - 385g

Note: The pedal axle is too large to fit into the pedal holder used on the P, G and T line Brompton bicycles
