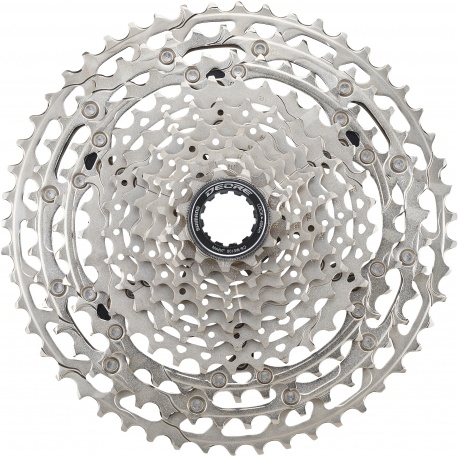

Shimano CS-M5100 Deore 11-speed cassette, 11-51T View larger

Shimano CS-M5100 Deore 11-speed cassette, 11-51T

CSM5100151

Shimano

Shimano CS-M5100 Deore 11-speed cassette, 11-51T

More details

We have 3 in stock

£79.99

Add to wishlist

More info

Shimano CS-M5100 Deore 11-speed cassette, 11-51T

This Mountain bike cassette is a Deore M5100 11-Speed Hyperglide cassette featuring light weight minimal design sprocket carrier

The Hyperglide sprockets have a computer designed tooth configuration with contoured shift gates, resulting in a crisp smooth shift even under load

Brompton compatibility:

We used the first 5 sprockets of this cassette (11/13/15/18 and 21T) to convert our Brompton P Line from a 4 to 5 speed, giving better climbing ability

The close ratio gearing allows a more efficient use of energy through finer cadence control

Weight reduction is made by using cut away sprocket which maintain rigidity

For use with 11-speed HG-EV MTB chains

Colour: Silver

The cassette is built of the following sprockets / spacers:

  • Lock ring (tighten to 40Nm)
  • 11T sprocket
  • 13T sprocket
  • 15T sprocket
  • spacer
  • 18T sprocket
  • spacer
  • 21T sprocket
  • spacer
  • 24T sprocket
  • carrier with 28T / 33T / 39T / 45T / 51T sprockets

Tools required:

  • Chain whip (to hold cassette when removing)
  • Lockring removal tool (to undo cassette)
  • Adjustable spanner (to hold locking tool)
  • Grease (to grease hub)
  • Torque wrench (to tighten cassette - to 40Nm)

We made this youTube video on how we did it:

Reviews

Write a review

Shimano CS-M5100 Deore 11-speed cassette, 11-51T

Shimano CS-M5100 Deore 11-speed cassette, 11-51T

Shimano CS-M5100 Deore 11-speed cassette, 11-51T

Have a question?

If your question has not yet been answered here, use the form below to ask something

(optional)
*(Required - so we can email an answer - we wont show it)

Data sheet

DisciplineMTB
Sprockets11-speed
Gear Range11-51T
GroupsetDeore XT
