Yeti Cycles ASR T-Series 29in Frame - Purple Haze - L

Yeti Cycles ASR T-Series 29in Frame - Purple Haze - Size: Large

The ASR is back!

Yeti have never made a lighter full-suspension bike, but that’s just half the story

It brings proper suspension to proper mountain bike racing. The kind that takes skill, not just lungs

The new ASR marks the most extensive carbon project that Yeti have ever tackled. The result yielding the lightest full suspension bike in the history of Yeti, contemporizing the Yeti flex stay design to check today’s kinematics standards, providing proper sag, killer small-bump sensitivity, insane traction and 100% usable travel.

The Yeti ASR is available in a choice of 5 sizes - Extra Small through to Extra Large

Of course the only real way to check your size is to try one - but here's a rough guide based on rider height:

TURQ Carbon Frame, SIDLUXE ULT - 3 position with Twistloc lockout

• Threaded 73mm BSA bottom bracket shell
• Internally tunnelled cable routing
• 148mm x 12mm Boost dropouts
• Sealed Enduro max pivot bearings
• Universal Derailleur Hanger (UDH) and axle

• Recommended fork: 120mm (can take up to 140mm)
• Rear travel: 115mm (4.5 inches)
• Rear shock: Rock Shox Sidluxe Ultimate 3 position with remote

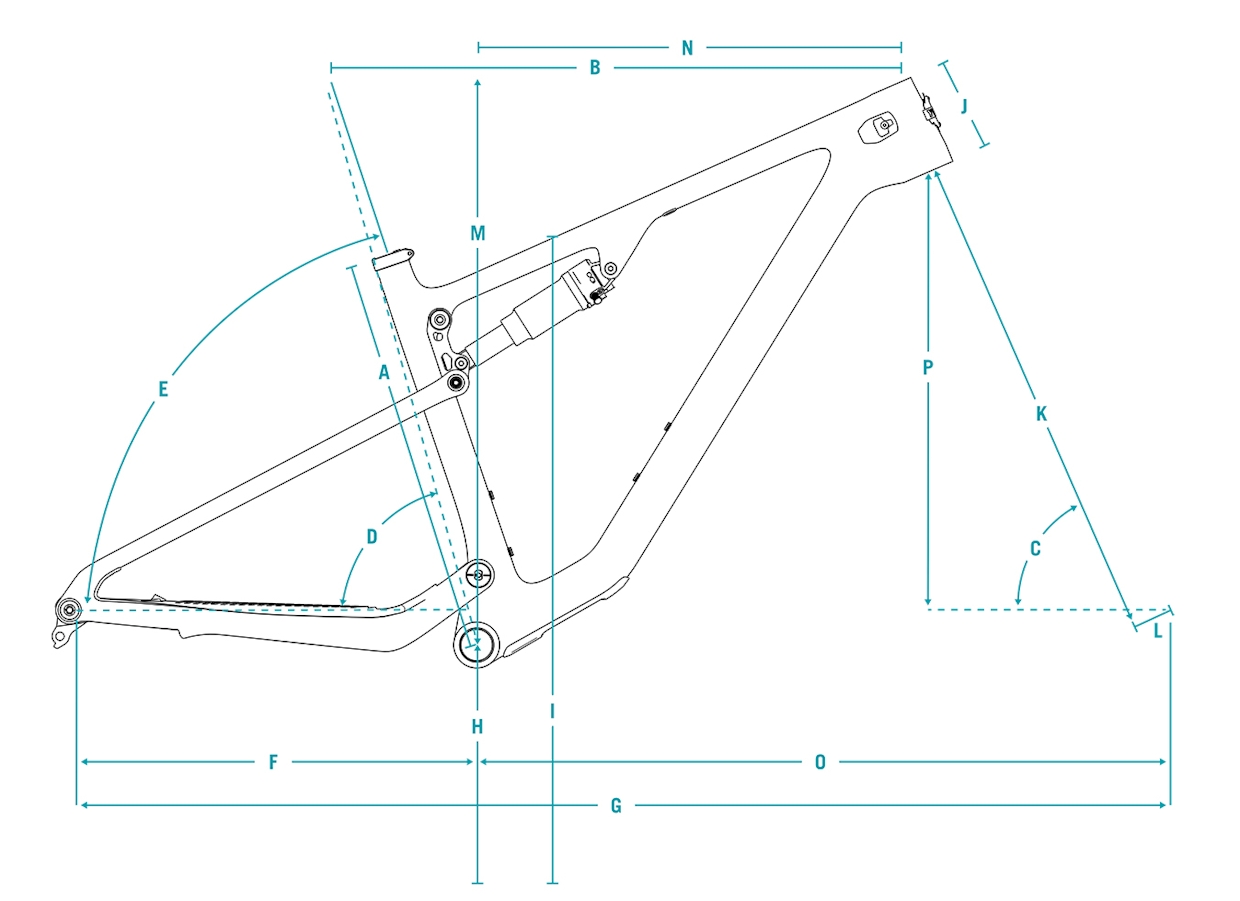

A/ Seat tube length: 470 mm
B/ Effective top tube length: 610 mm
C/ Headtube angle: 66.5 degrees
D/ Effective seat tube angle: 75.5 degrees
E/ Actual seat tube angle: 71.6 degrees
F/ Chainstay length: 439mm
G/ Wheelbase: 1201mm
H/ Estimated bottom bracket height: 335 mm
I/ Standover height: 771mm
J/ Headtube length: 111mm
K/ Axle to crown (based on 120mm fork): 531mm
L/ Fork offset: 44mm
M/ Stack: 610mm
N/ Reach: 465mm
O/ Front centre: 762mm
P/ Vertical fork travel: 110mm
